Photoelectric Sensors


<< Back >>
PD30CTD02NAWE
Diffuse-reflective Photoelectric Sensor, range 200 mm, infrared modulated light 850nm, Power Supply 10-30VDC, NPN, NO+NC, 2m Cable, IP67, Top Trimmer, Wide angled
Data sheet

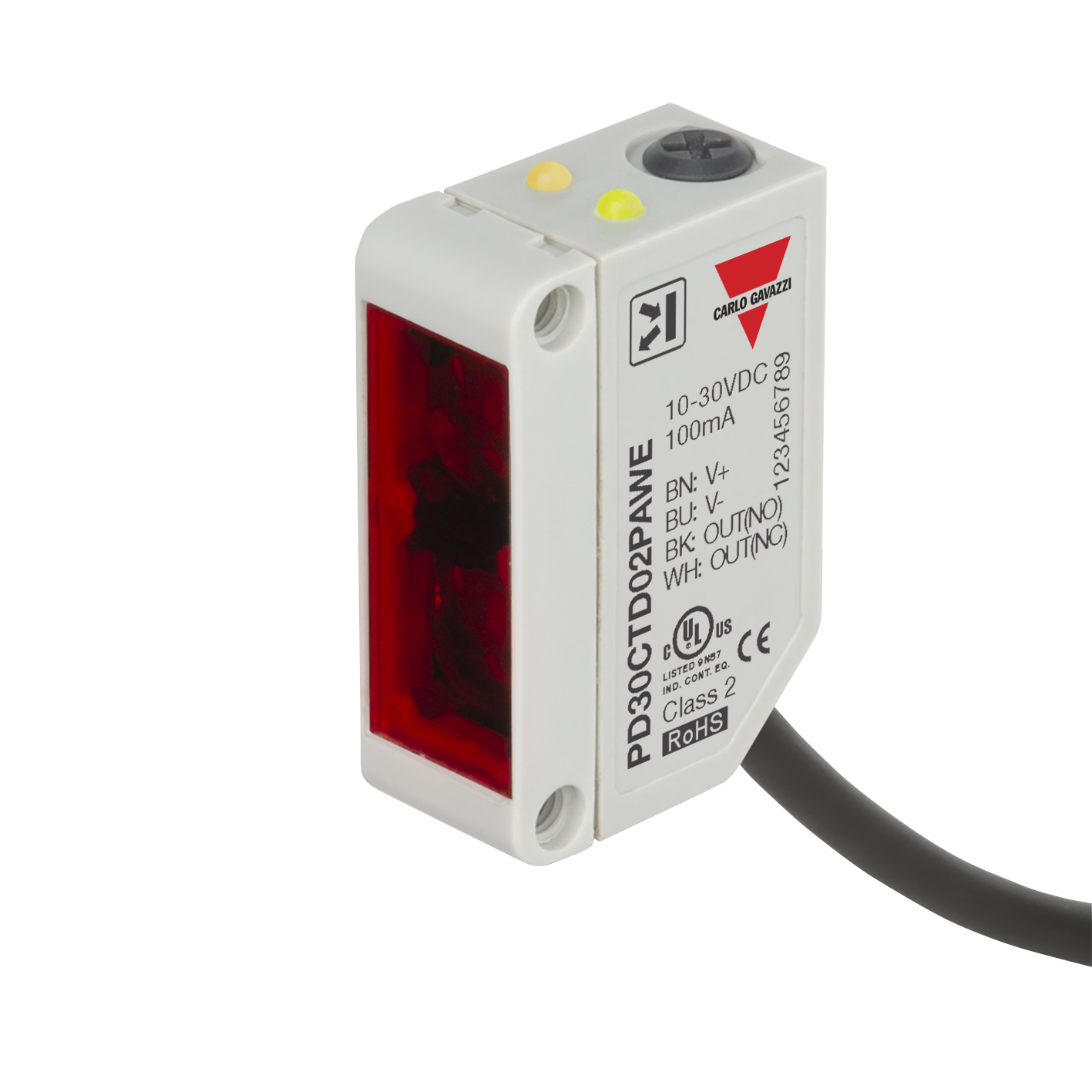

PD30CTD02PAWE
Diffuse-reflective Photoelectric Sensor, range 200 mm, infrared modulated light 850nm, Power Supply 10-30VDC, PNP, NO+NC, 2m Cable, IP67, Top Trimmer, Wide angled
Data sheet

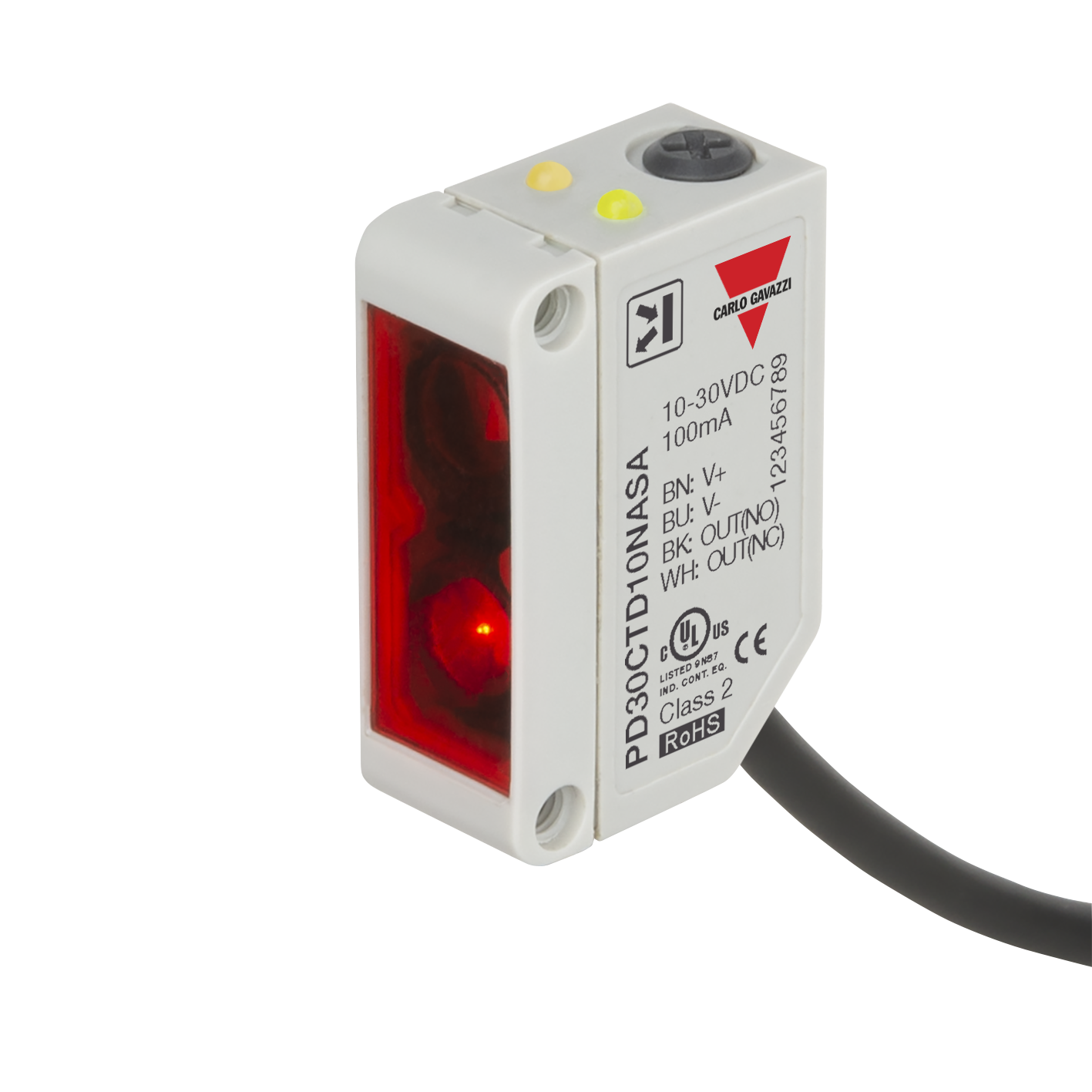

PD30CTD10NASA
Diffuse-reflective Photoelectric Sensor, range 1000 mm, red modulated light 625nm, Power Supply 10-30VDC, NPN, NO+NC, 2m Cable, IP67, Top Trimmer
Data sheet
PD30CTD10PASA
Diffuse-reflective Photoelectric Sensor, range 1000 mm, red modulated light 625nm, Power Supply 10-30VDC, PNP, NO+NC, 2m Cable, IP67, Top Trimmer
Data sheet
PD30CTPR60BPA2IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 6000mm, red polarized modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

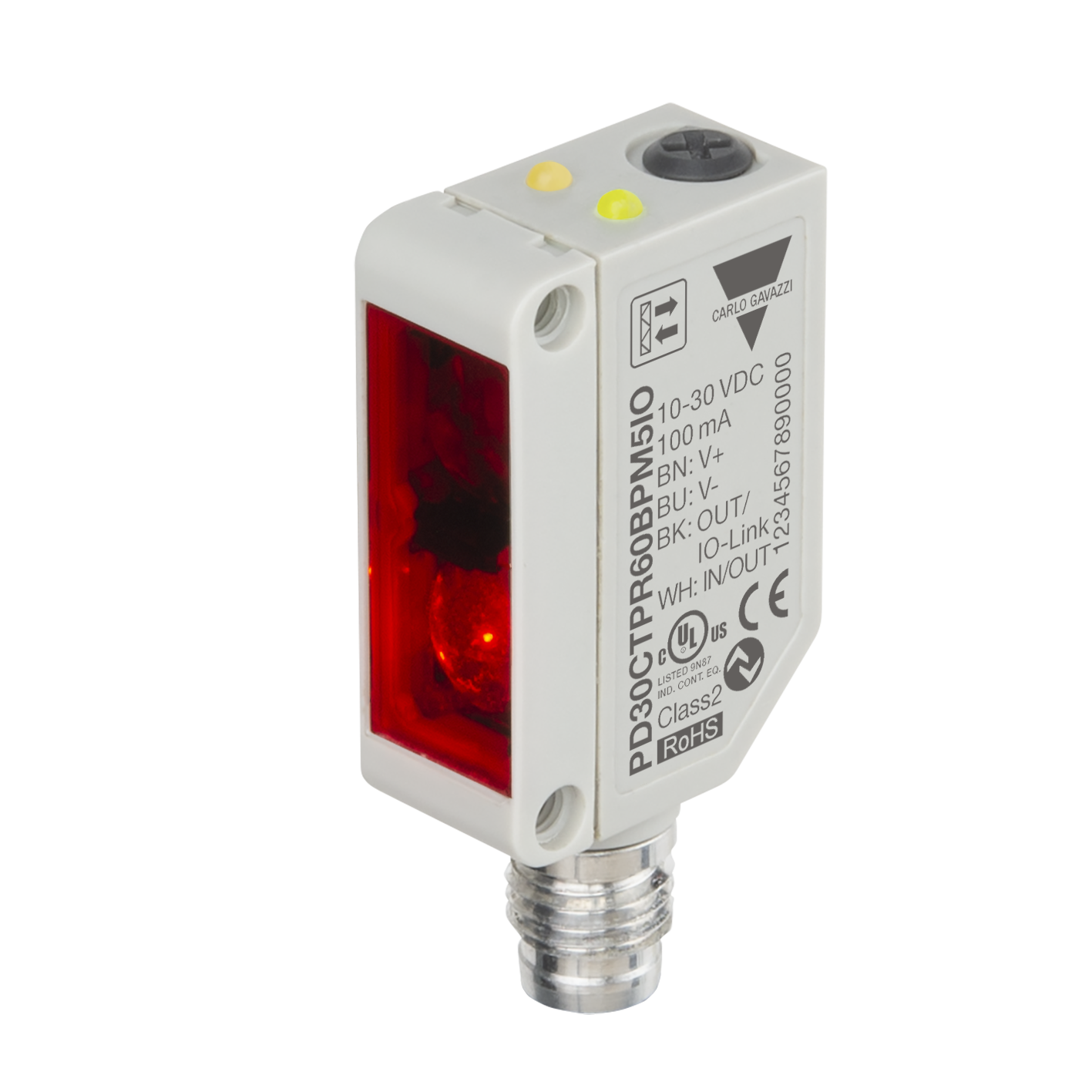

PD30CTPR60BPM5IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 6000mm, red polarized modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67
Data sheet
PD30CTPS50BPA2IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 5000mm, PointSpot red polarized modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

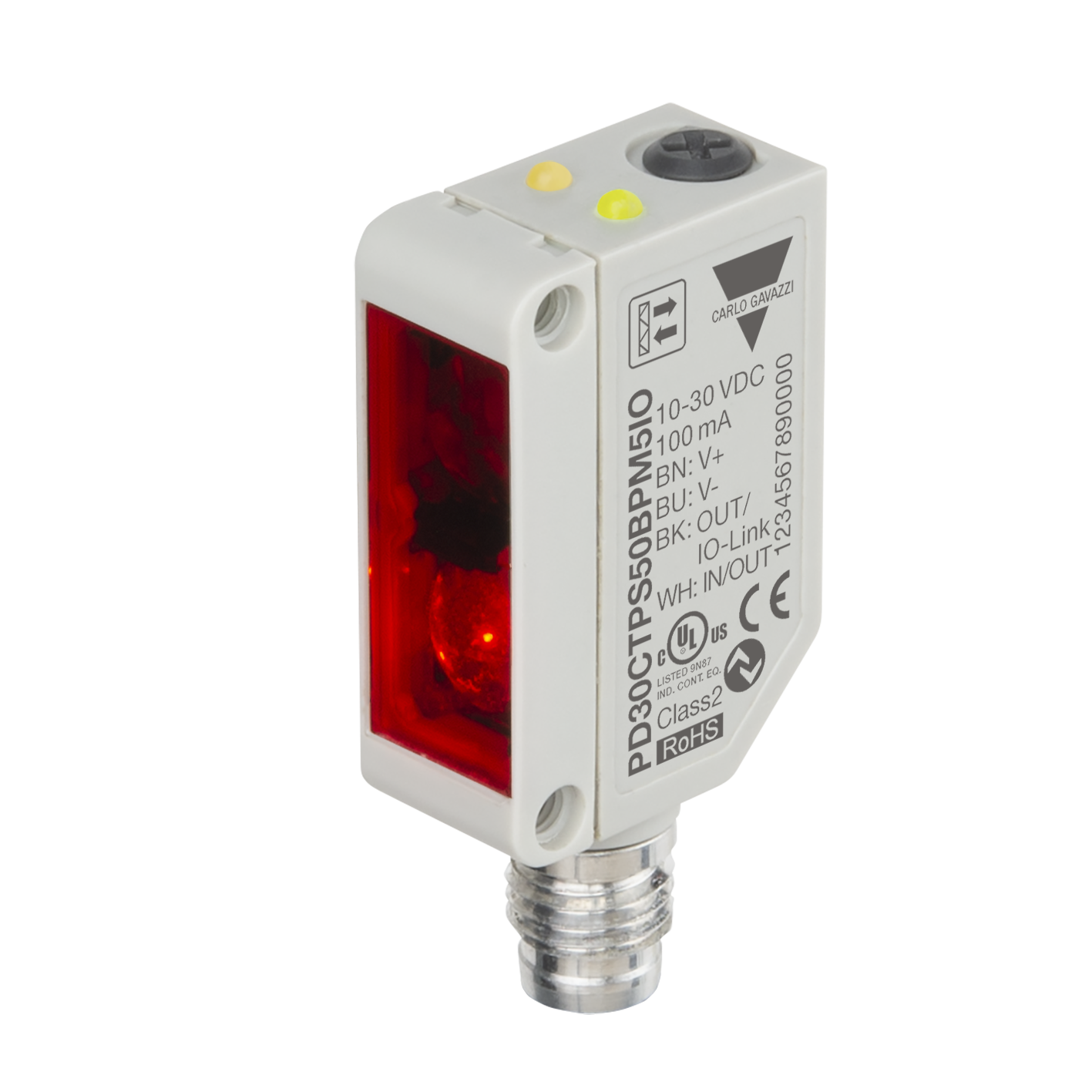

PD30CTPS50BPM5IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 5000mm, PointSpot red polarized modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67
Data sheet

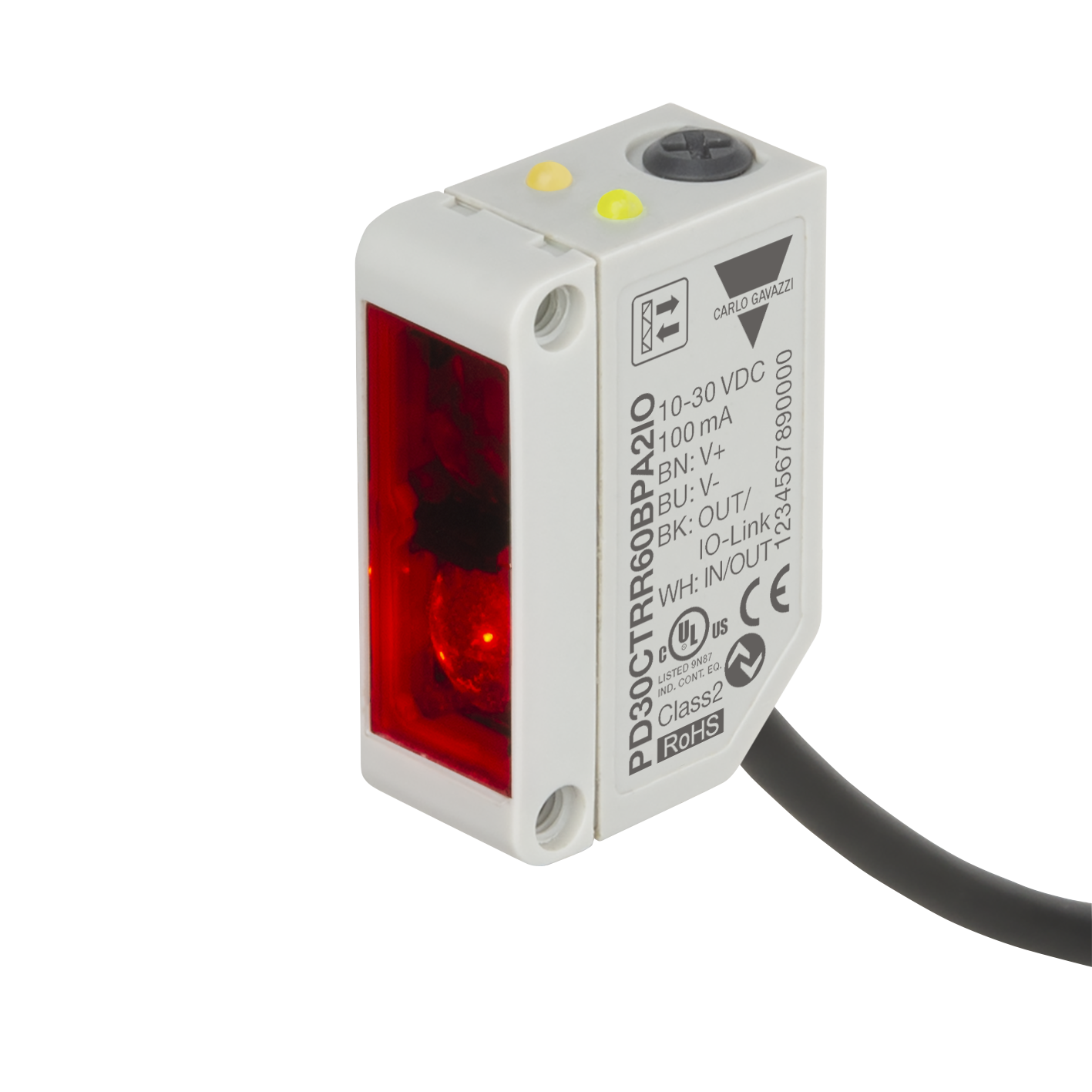

PD30CTRR60BPA2IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 6000mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet
PD30CTRR60BPM5IO
Polarized Retro-reflective Photoelectric Sensor, IO-Link, Range 6000mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67
Data sheet

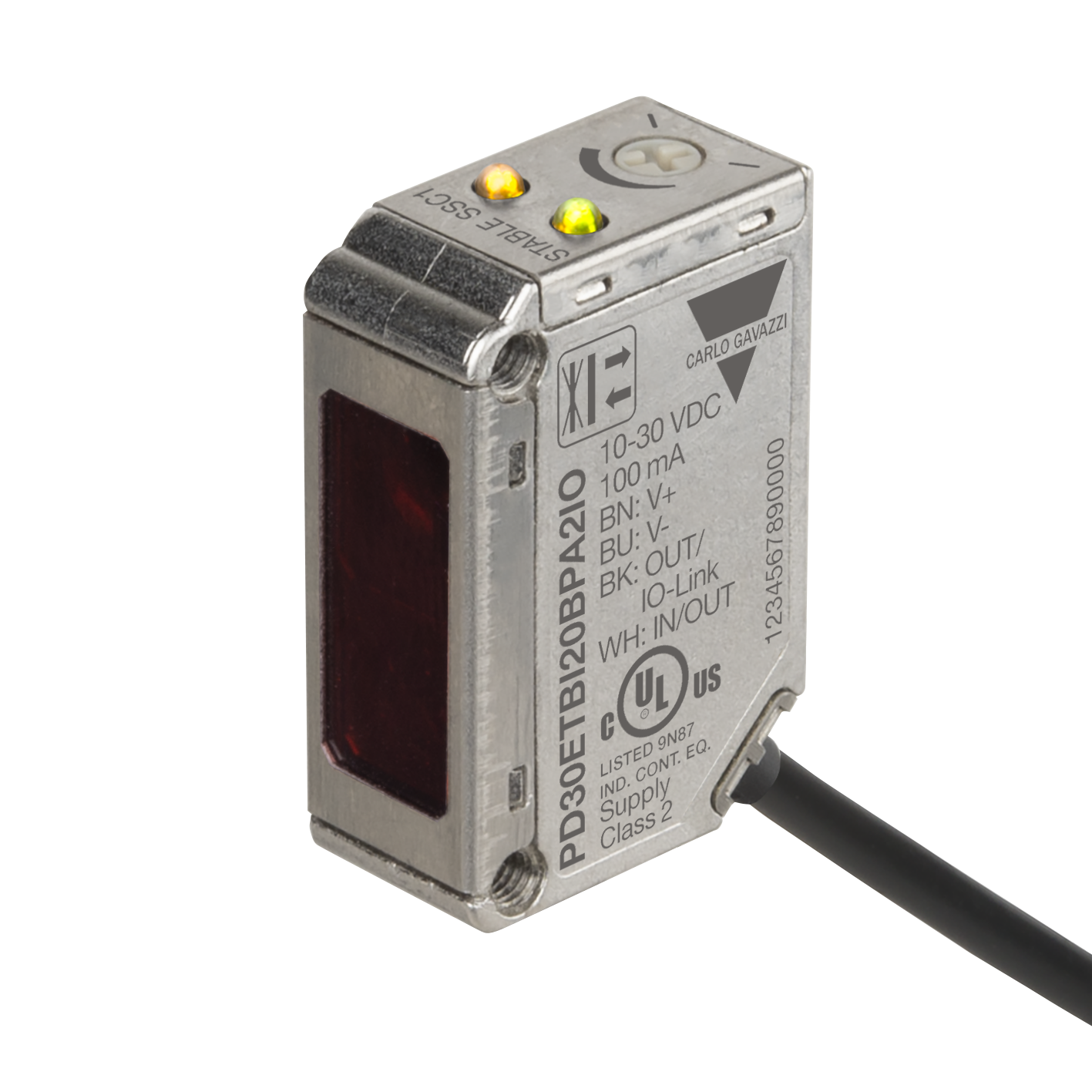

PD30ETBI20BPA2IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-200mm, Polarity free IR light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 11x31x21mm housing Stainless Steel, IP68, IP69K, ECOLAB
Data sheet

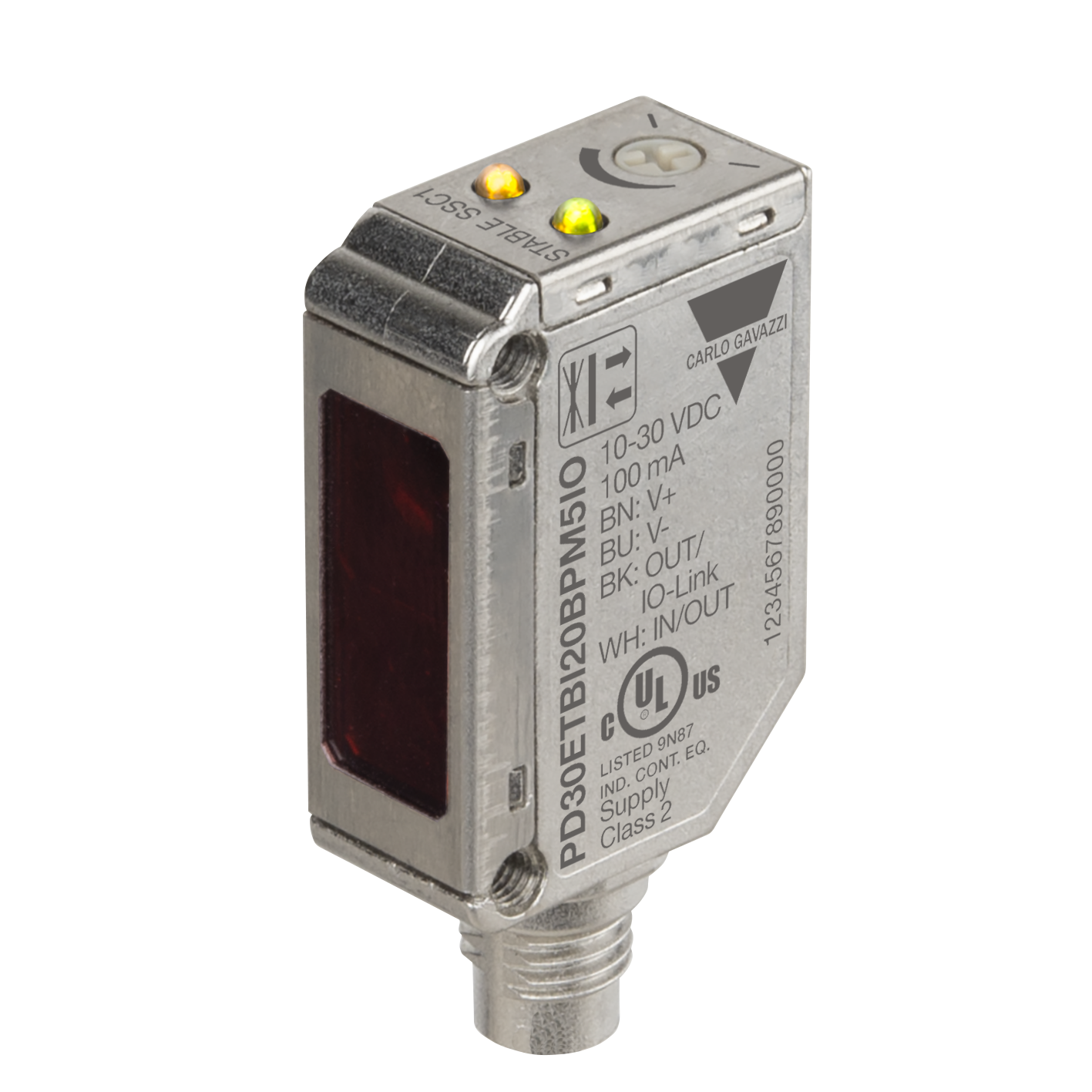

PD30ETBI20BPM5IO
Diffuse-reflective Photoelectric Sensor with Adj. Background Suppression, IO-Link, Range: 0-200mm, Polarity free IR light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 11x31x21mm housing Stainless Steel, IP68 IP69K, ECOLAB
Data sheet
