Photoelectric Sensors


<< Back >>

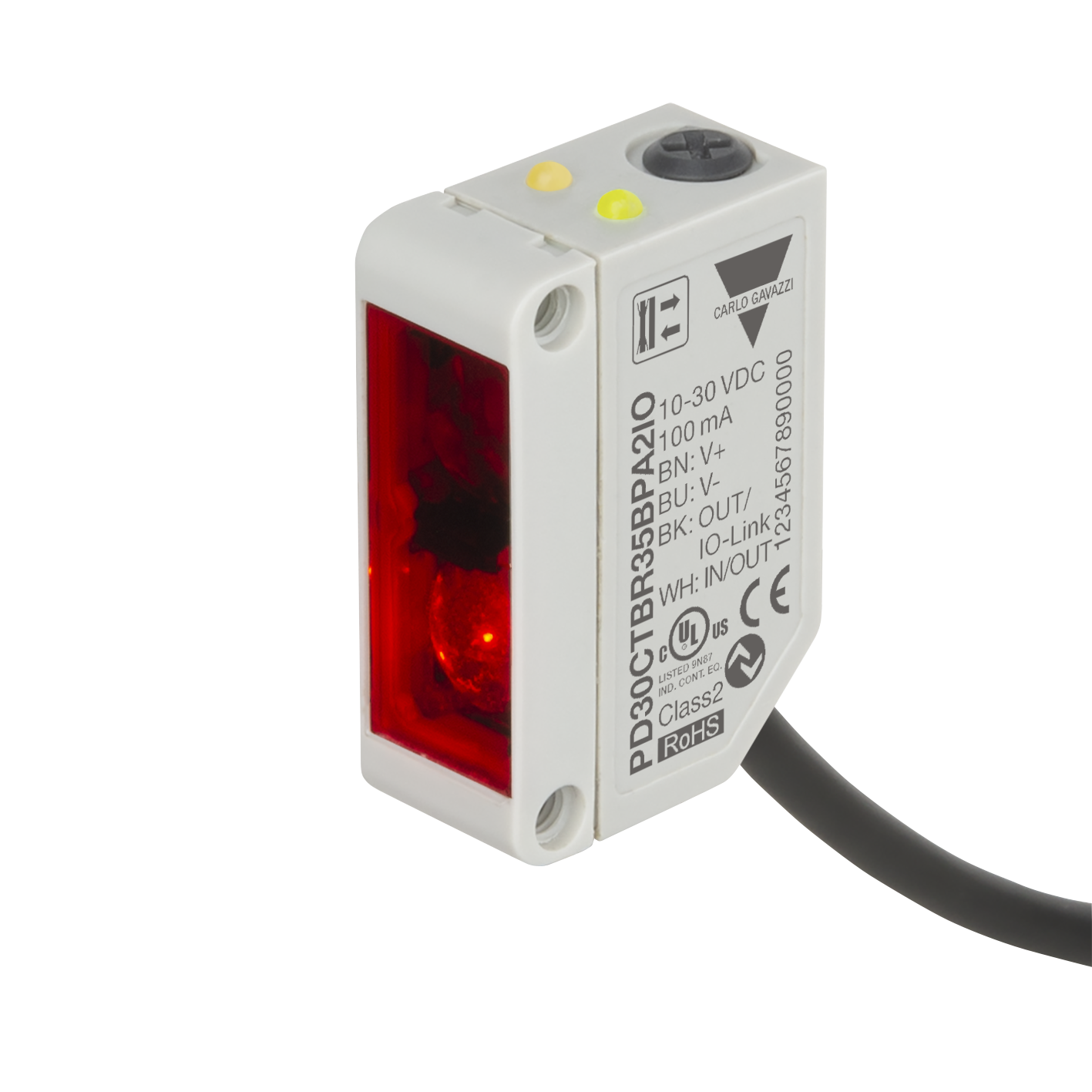

PD30CTBR35BPA2IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-350mm, Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

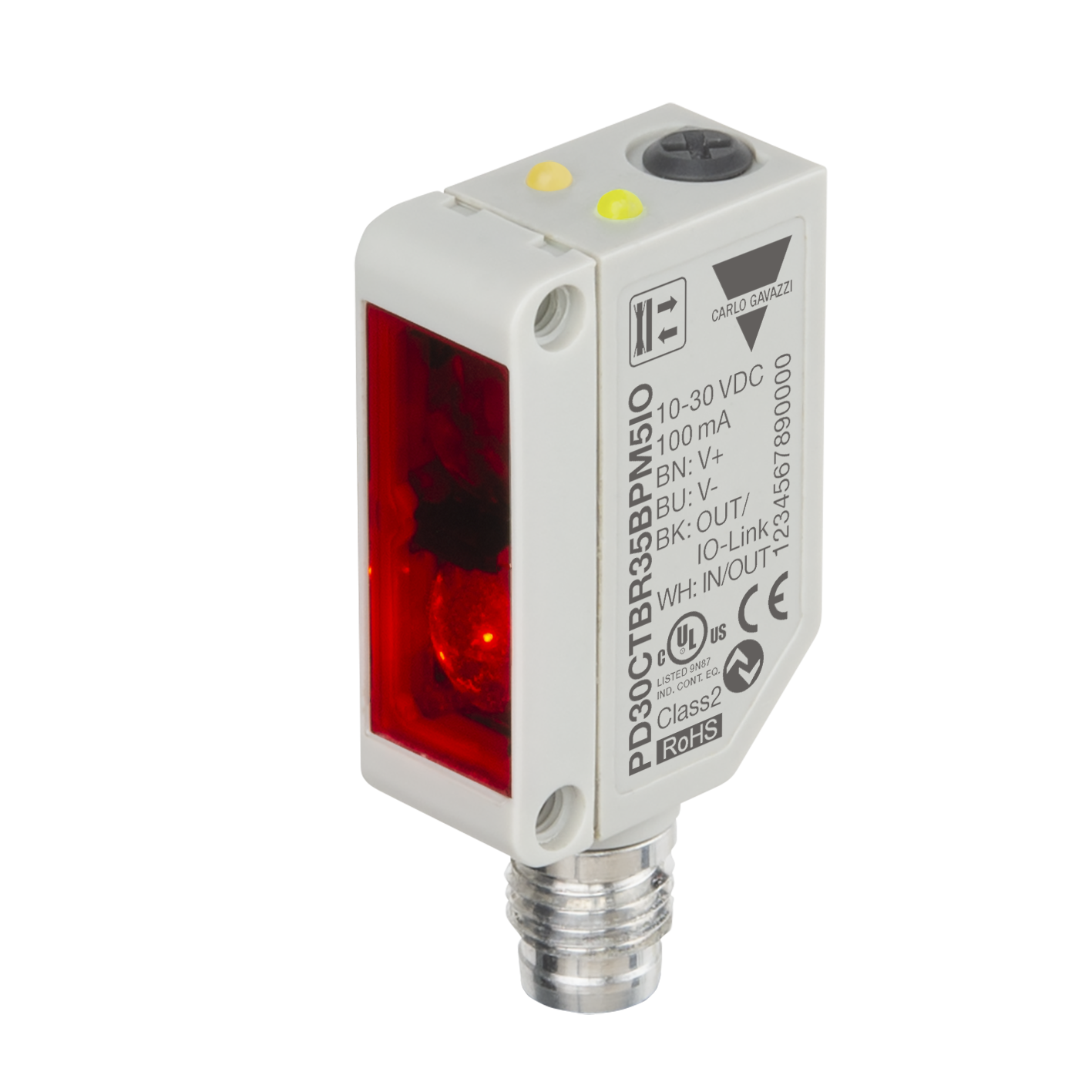

PD30CTBR35BPM5IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-350mm, Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 10x30x20mm housing Plastic, IP67
Data sheet
PD30CTBS25BPA2IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-250mm, PointSpot Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

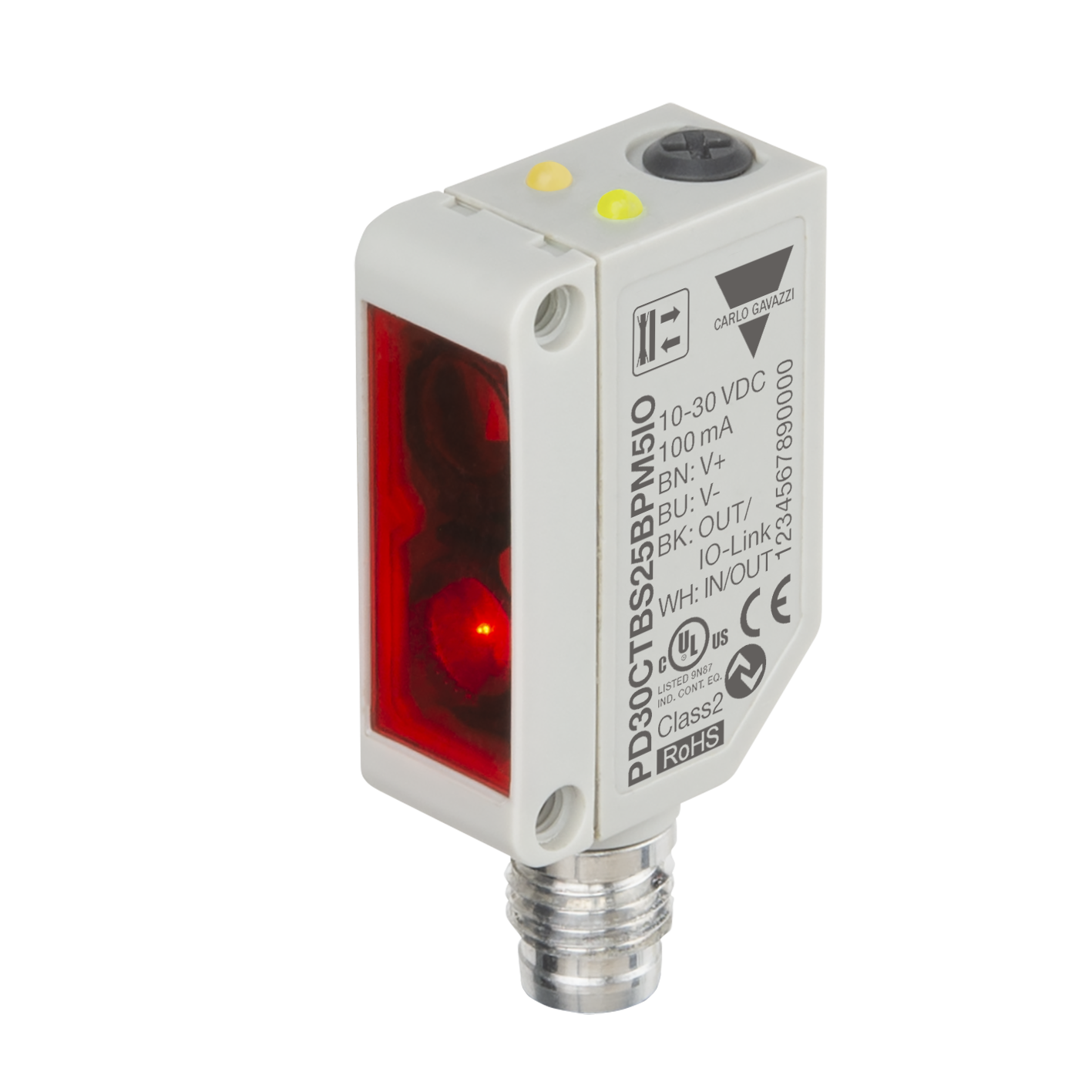

PD30CTBS25BPM5IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-250mm, PointSpot Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 10x30x20mm housing Plastic, IP67
Data sheet
PD30CTB20NAIS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet

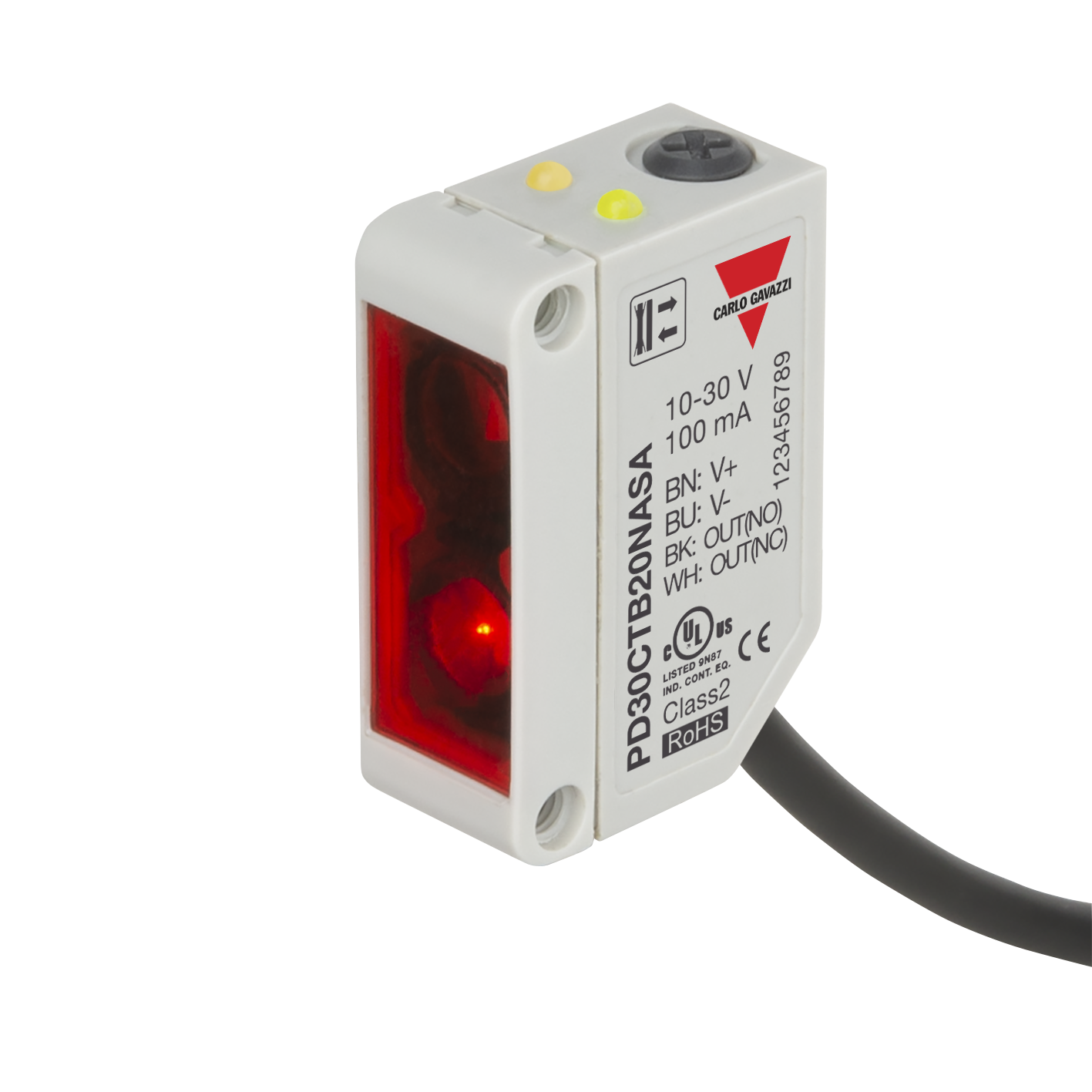

PD30CTB20NASA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet
PD30CTB20PAIS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet
PD30CTB20PASA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet
PD30CTDI10BPA2IO
Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, infrared modulated light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

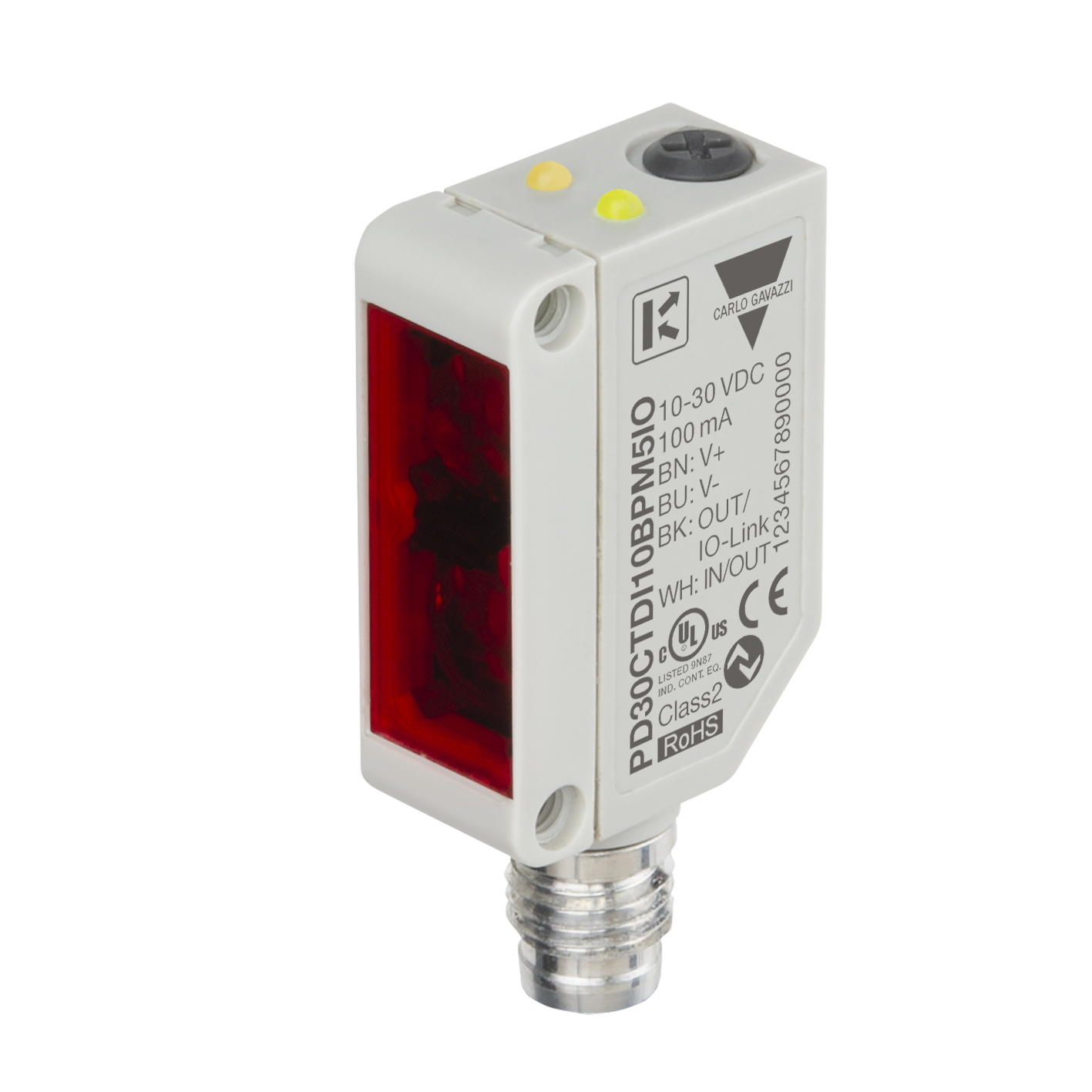

PD30CTDI10BPM5IO
Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, infrared modulated light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67
Data sheet

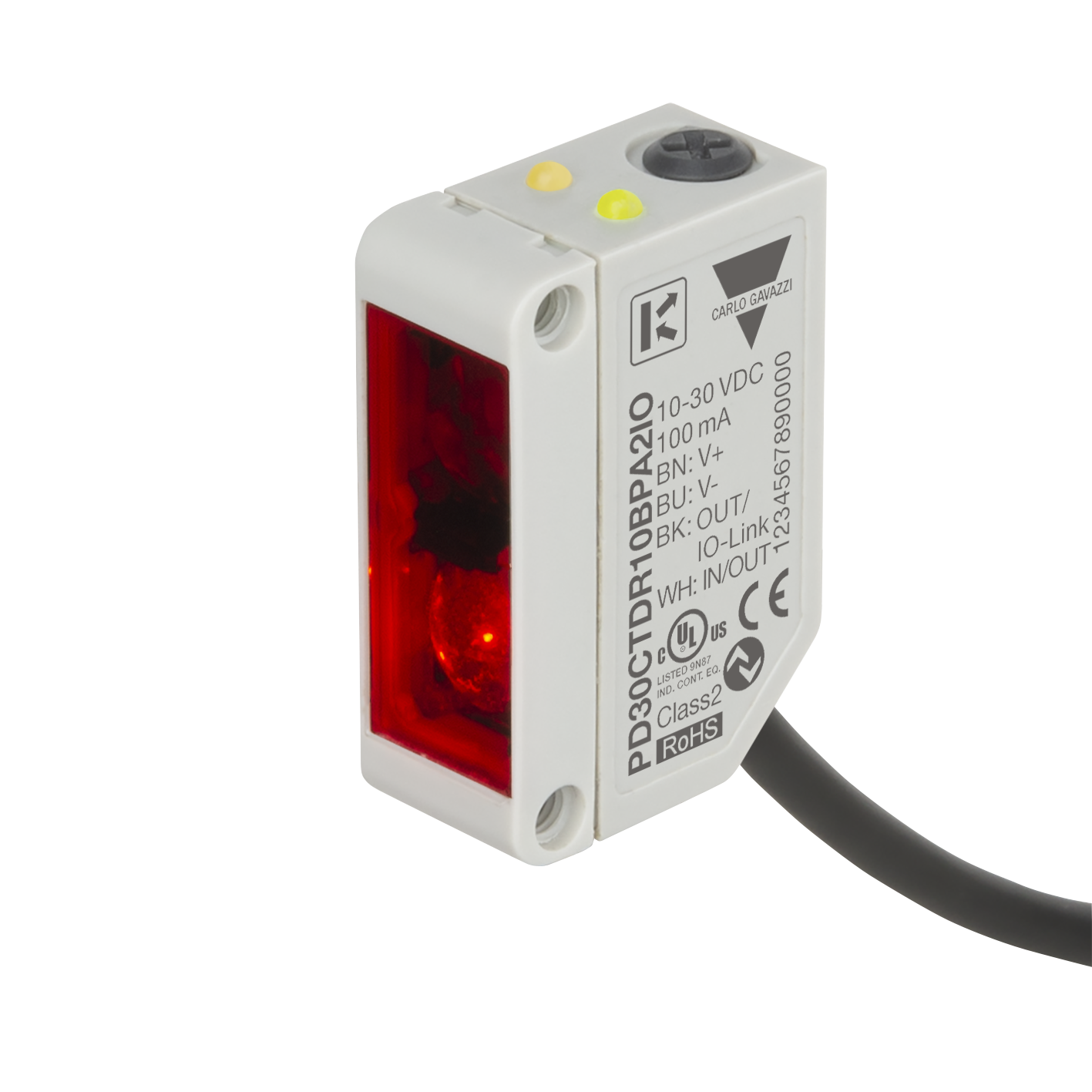

PD30CTDR10BPA2IO
Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C.C, 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

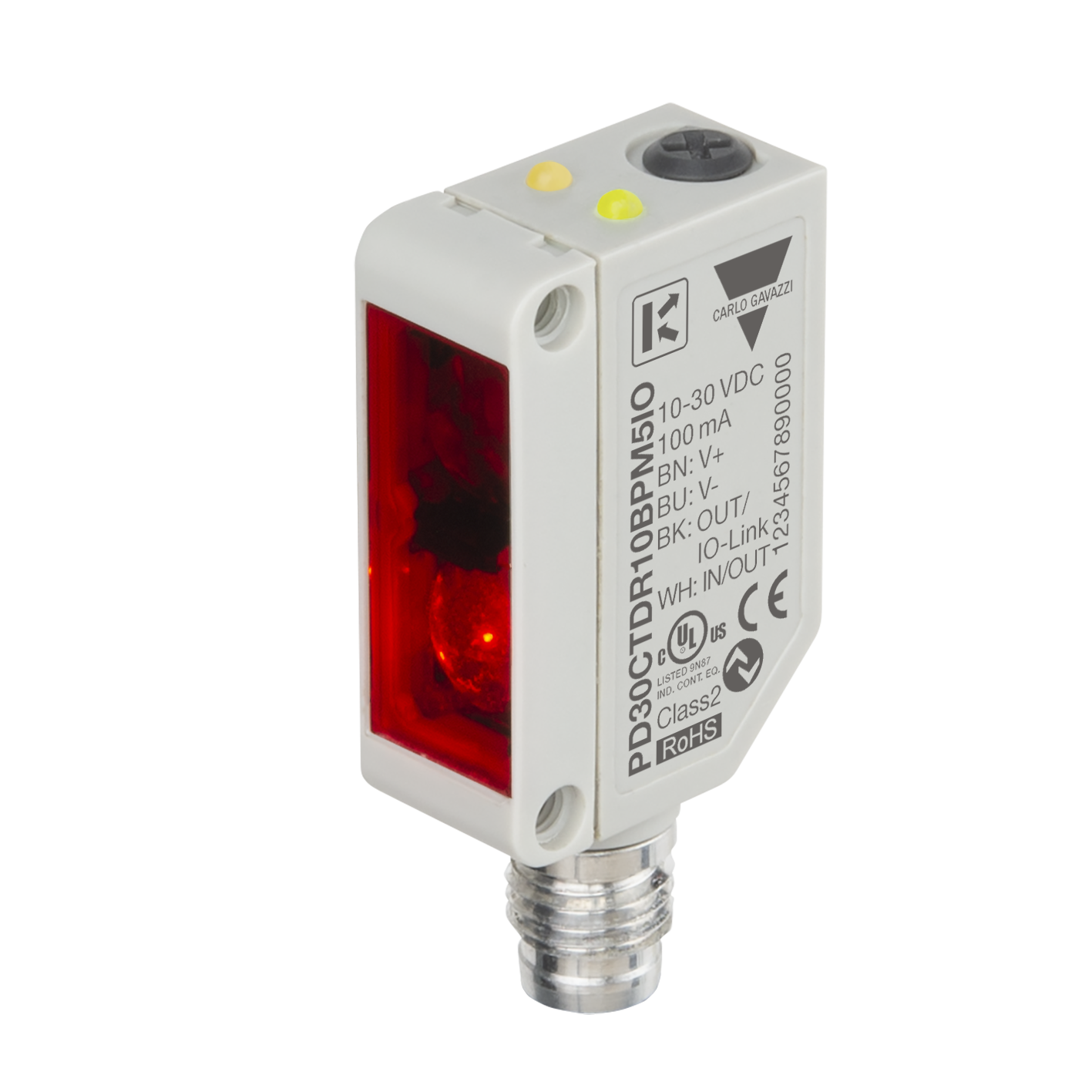

PD30CTDR10BPM5IO
Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67
Data sheet
