Photoelectric Sensors


<< Back >>

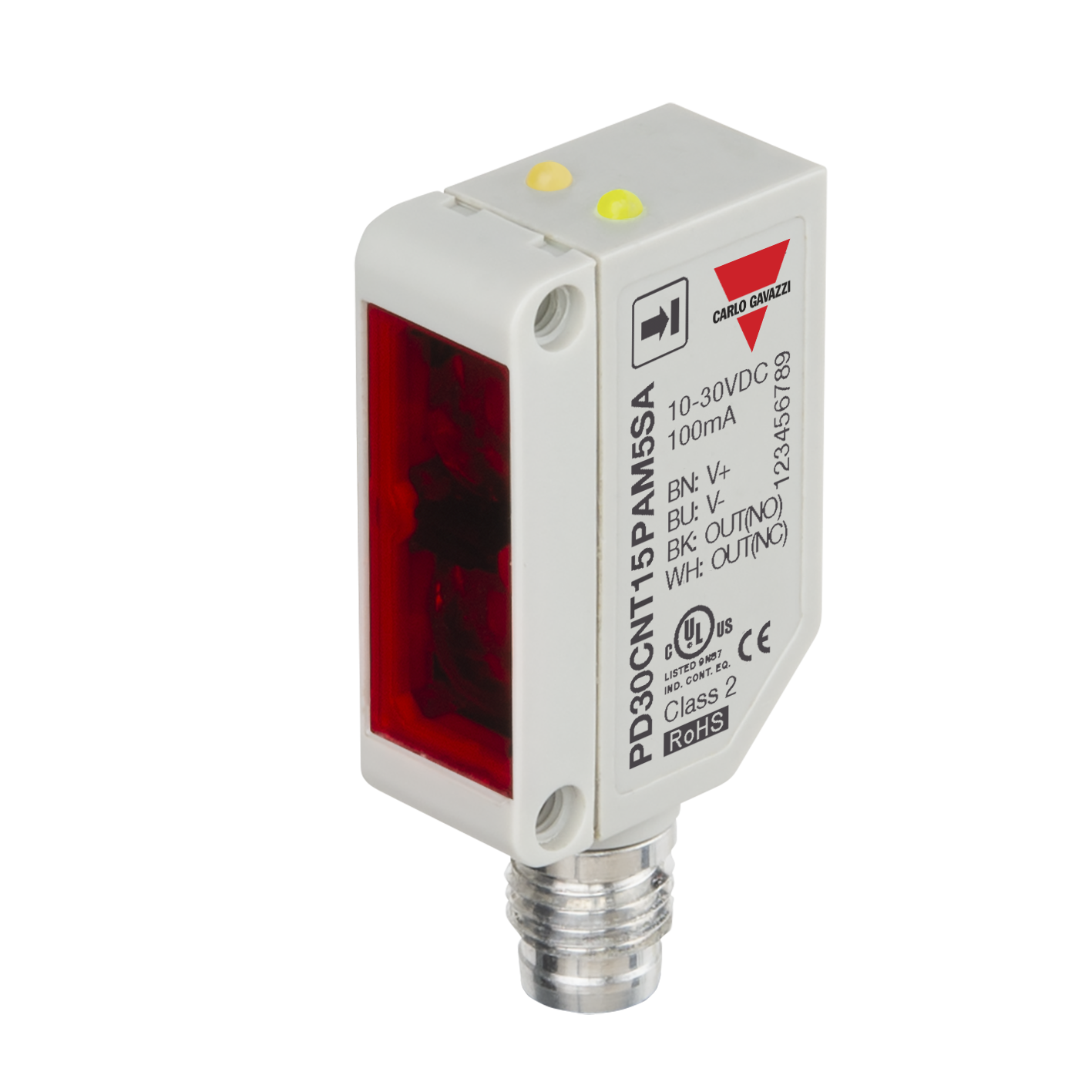

PD30CNT15PAM5SA
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 850nm, Power Supply 10-30VDC, PNP/PNP Output, N.O. and N.C., light and dark switching, Connector M8, 10x30x20mm housing
Data sheet

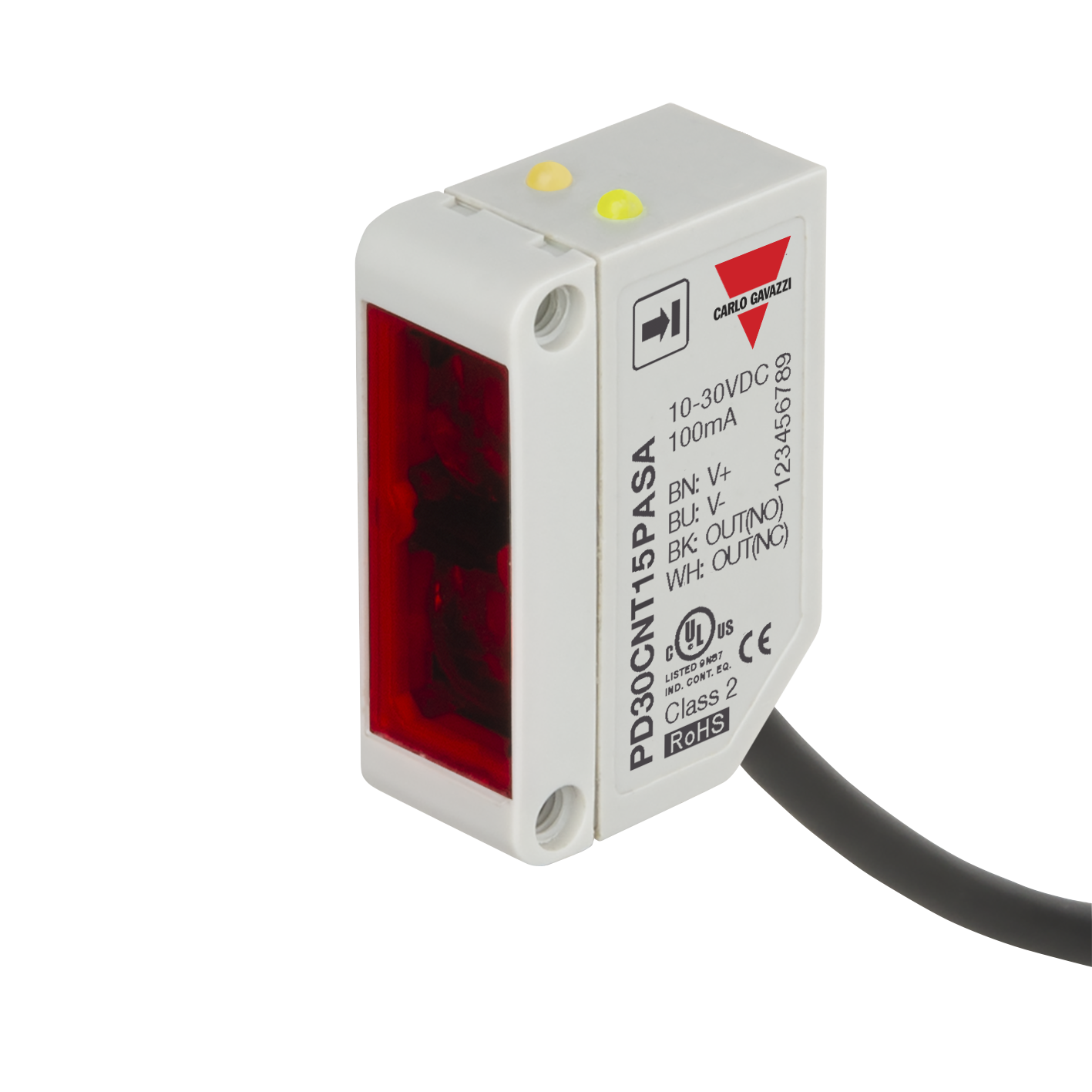

PD30CNT15PASA
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 850nm, Power Supply 10-30VDC, PNP/PNP Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet
PD30CNT15PMU
Photoelectric Through-beam Emitter, Range: 15000mm, Infrared light 880nm, Mute PNP, Power Supply 10-30VDC, Cable connection, 10x30x20mm housing
Data sheet

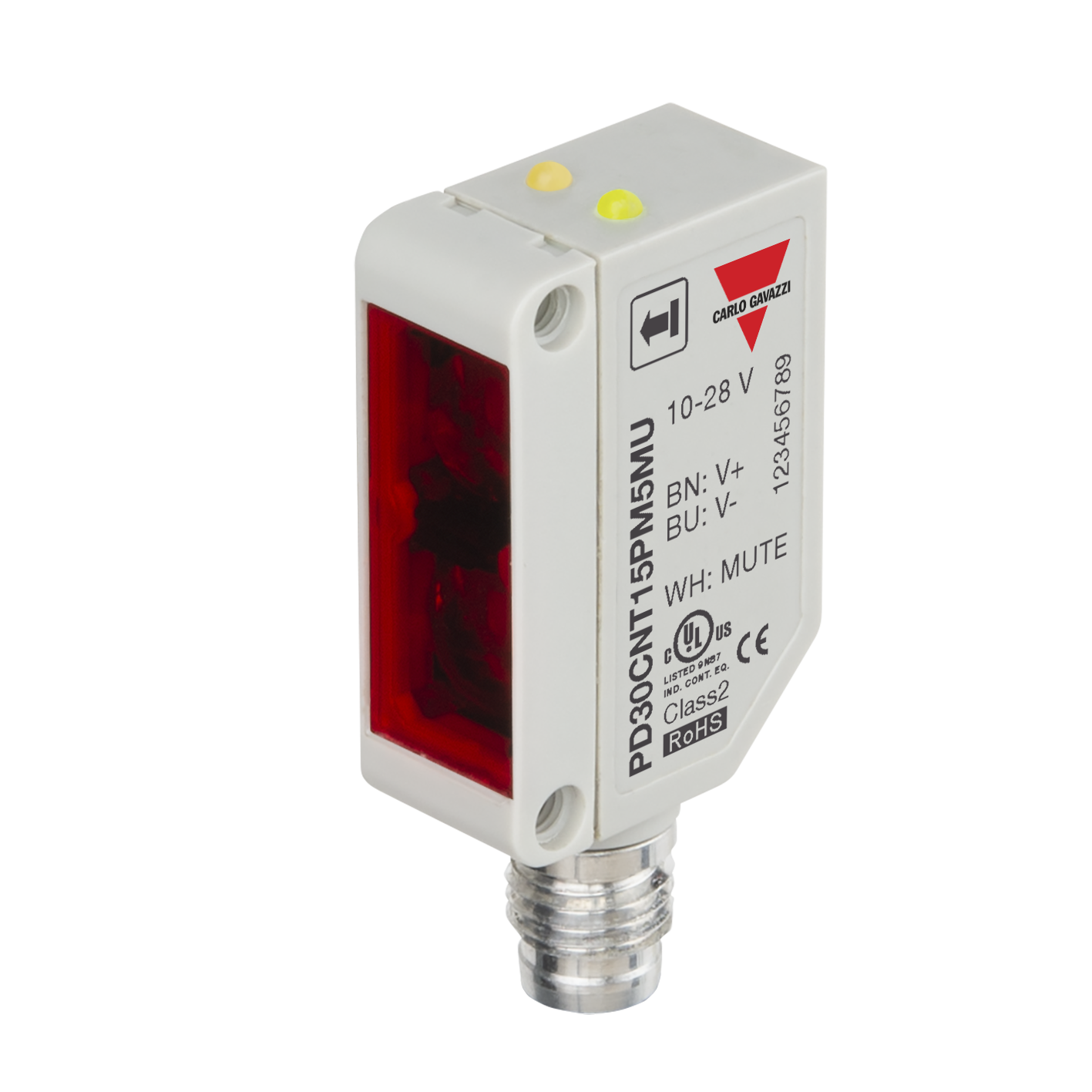

PD30CNT15PM5MU
Photoelectric Through-beam Emitter, Range: 15000mm, Infrared light 880nm, Mute PNP, Power Supply 10-30VDC, Connector M8, 10x30x20mm housing
Data sheet

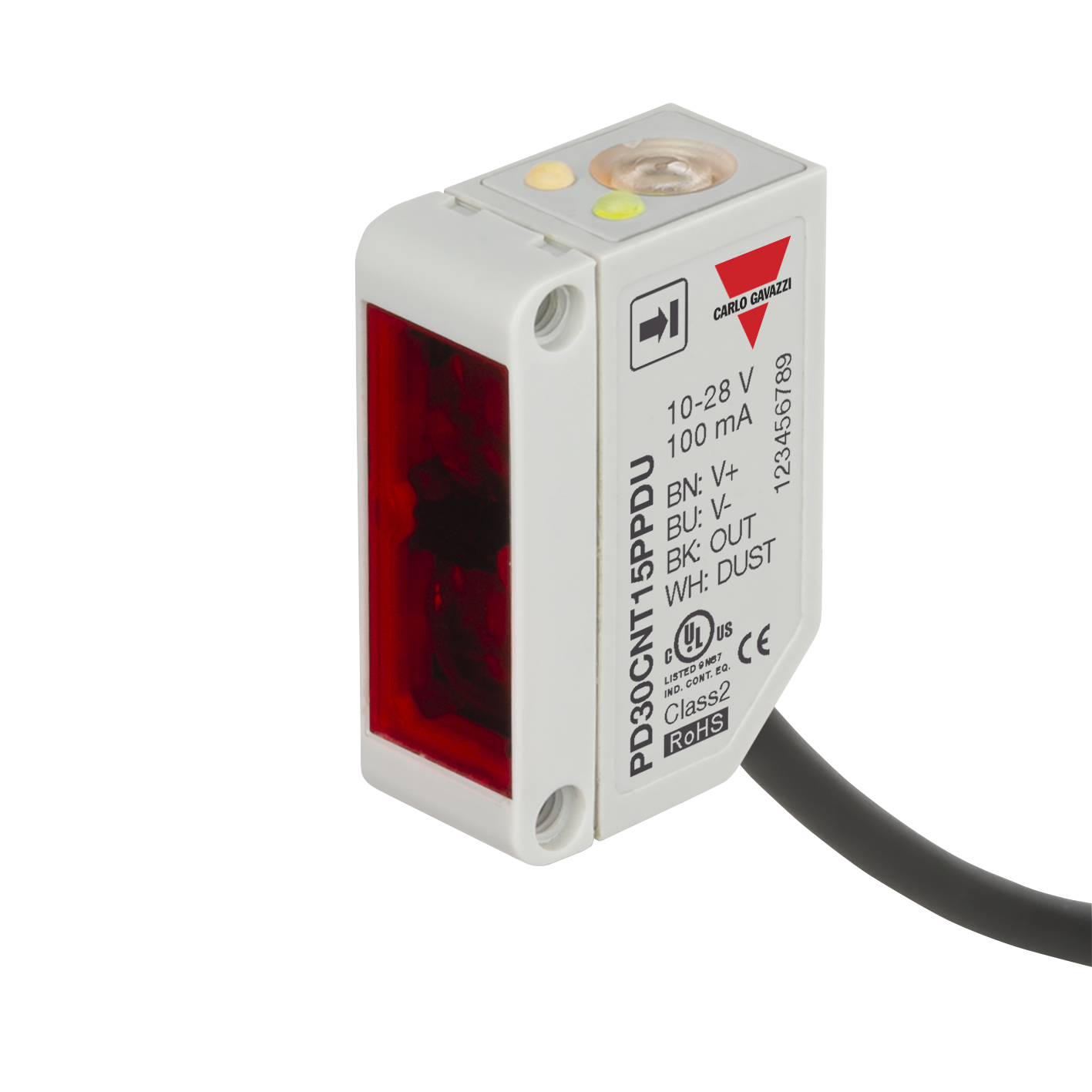

PD30CNT15PPDU
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 880nm, Power Supply 10-30VDC, Dust Output, PNP Output, N.O. or N.C., light or dark switching, Cable connection, 10x30x20mm housing
Data sheet

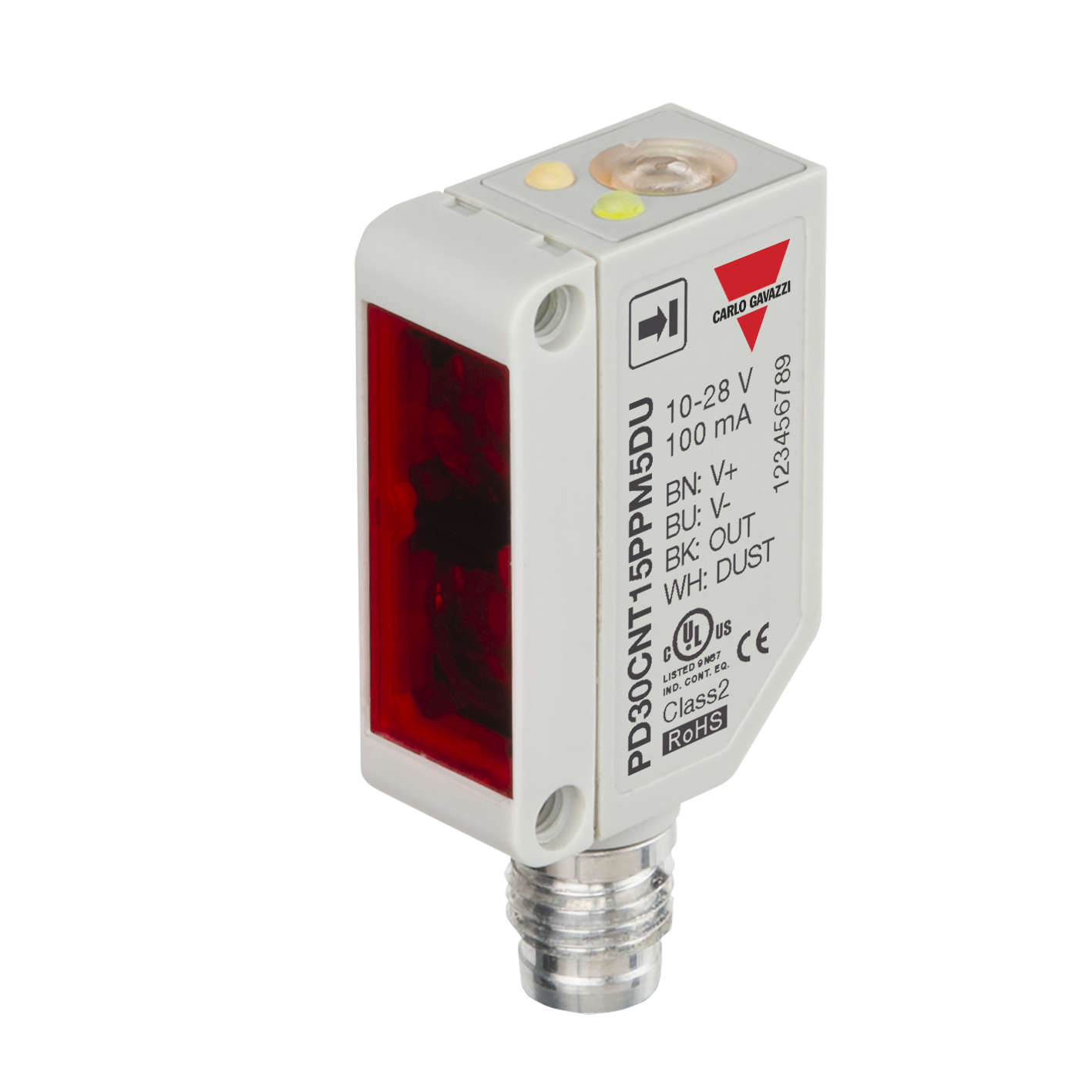

PD30CNT15PPM5DU
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 880nm, Power Supply 10-30VDC, Dust Output, PNP Output, N.O. or N.C., light or dark switching, Connector M8, 10x30x20mm housing
Data sheet

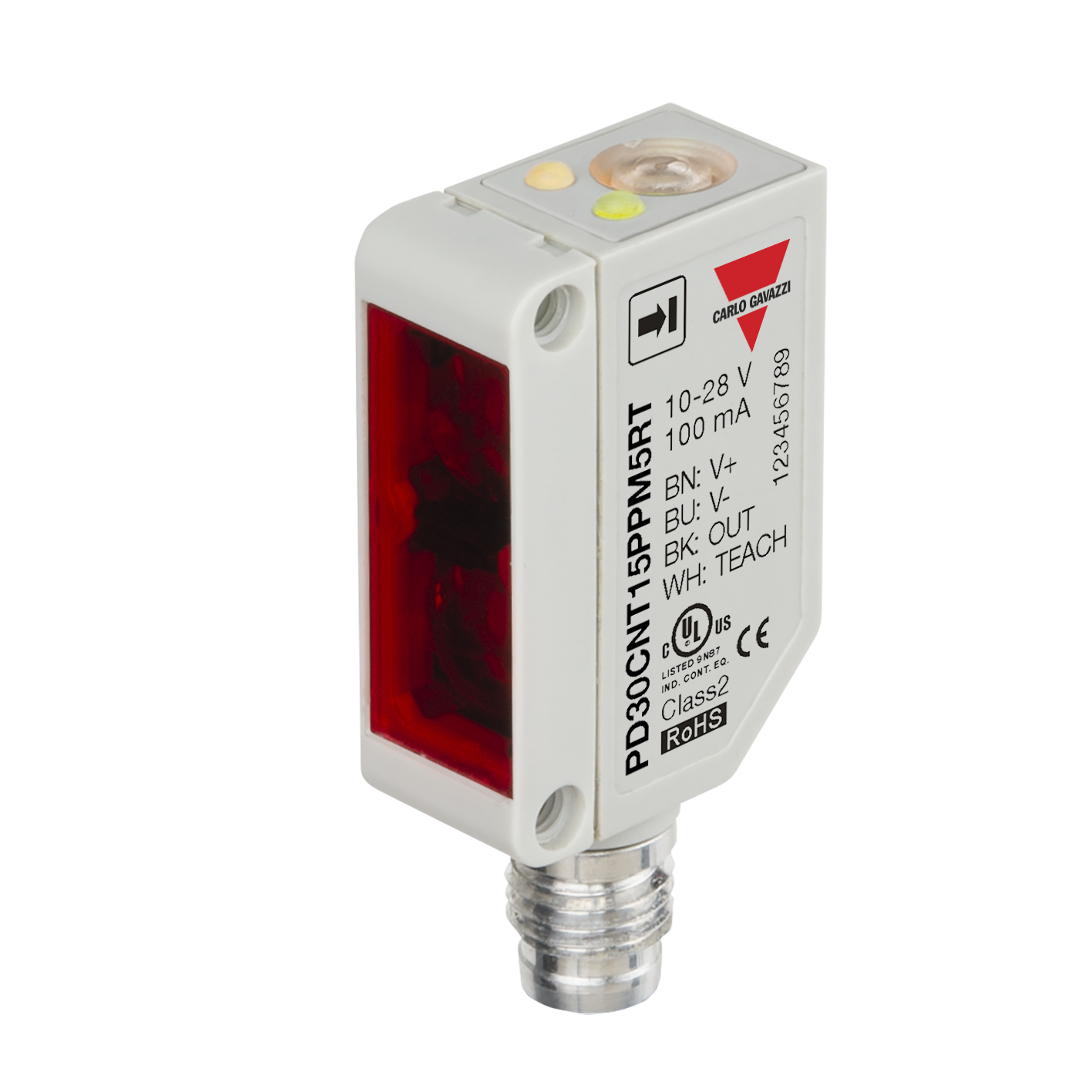

PD30CNT15PPM5RT
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 880nm, Power Supply 10-30VDC, Teach Input, PNP Output, N.O. or N.C., light or dark switching, Connecvtor M8, 10x30x20mm housing
Data sheet
PD30CNT15PPRT
Photoelectric Through-beam Receiver, Range: 15000mm, Infrared light 850nm, Power Supply 10-30VDC, Teach Input, PNP Output, N.O. or N.C., light or dark switching, Cable connection, 10x30x20mm housing
Data sheet
PD30CTBI20BPA2IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-200mm, Polarity free IR light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m cable, 10x30x20mm housing Plastic, IP67
Data sheet

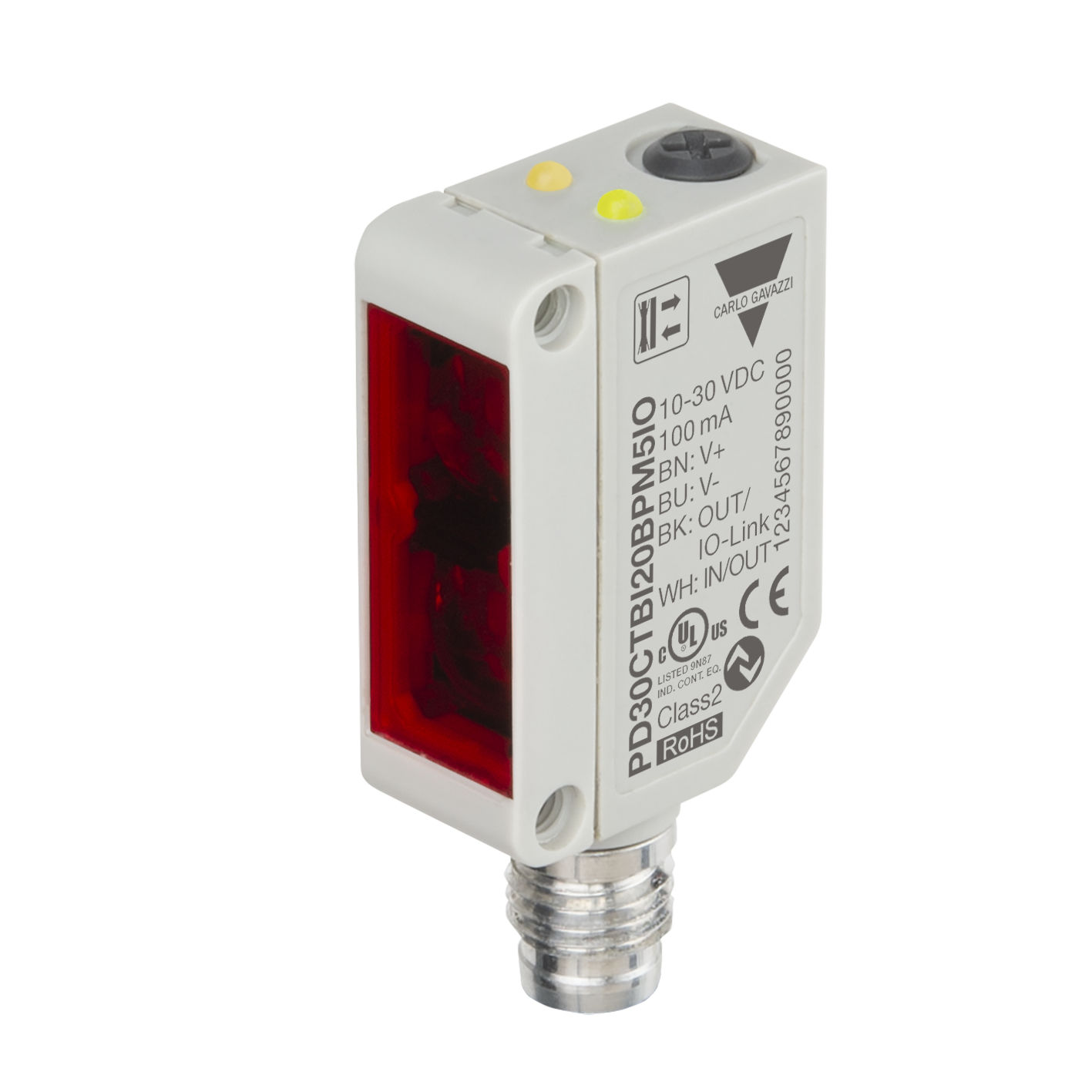

PD30CTBI20BPM5IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-200mm, Polarity free IR light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 10x30x20mm housing Plastic, IP67
Data sheet
PD30CTBR20BPA2IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-200mm, Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 10x30x20mm housing Plastic, IP67
Data sheet

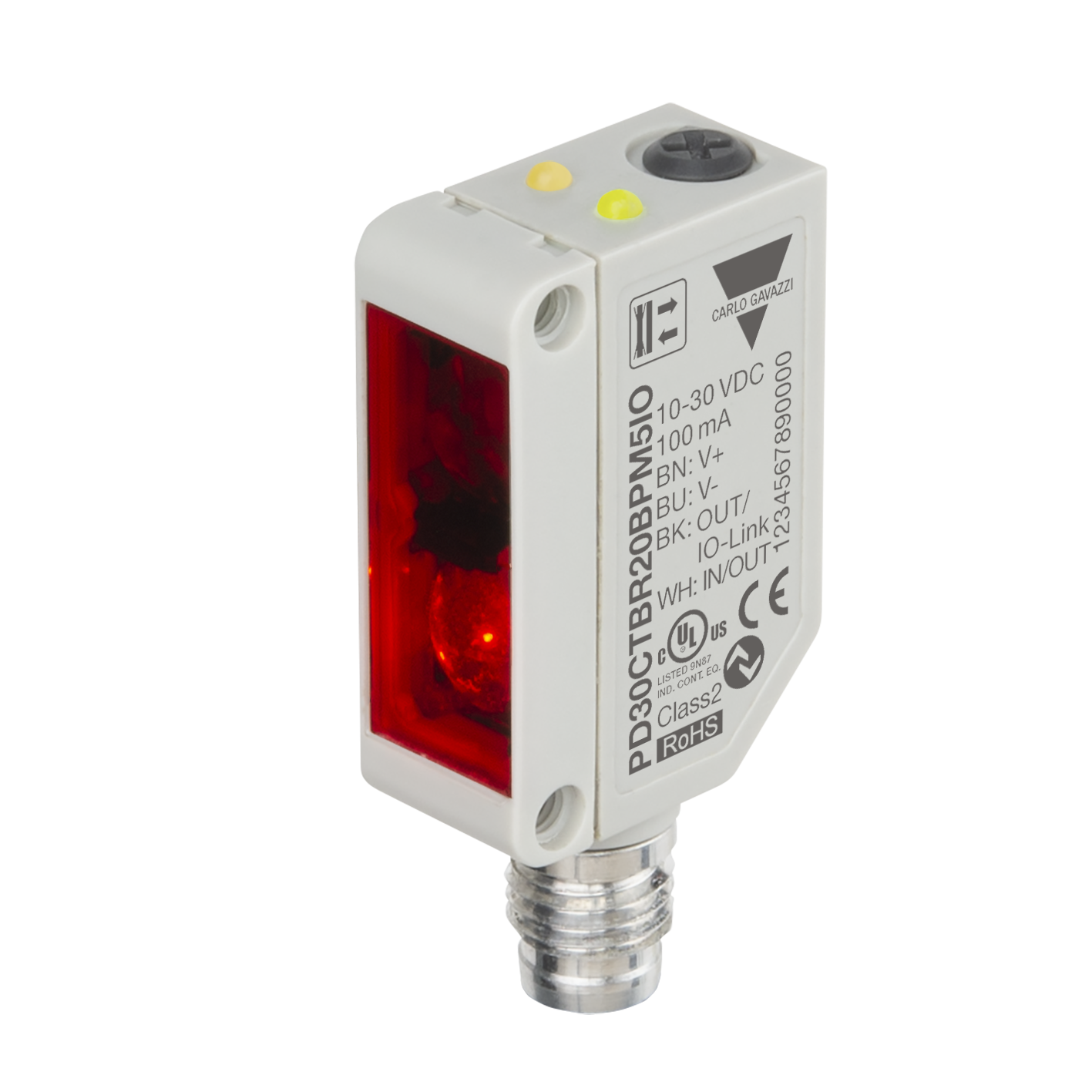

PD30CTBR20BPM5IO
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, IO-Link, Range: 0-200mm, Polarity free red light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 10x30x20mm housing Plastic, IP67
Data sheet
