0305 KSS Mounting Cable Tie
| ● | Material: UL approved Nylon 66, 94V-2 |
| ● | Color: Natural (for black. Please add “BK” to Item NO.) |
| ● | The cable tie can be secured to panel with a single bolt. |

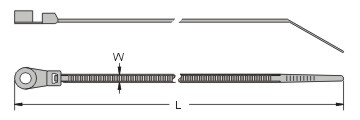

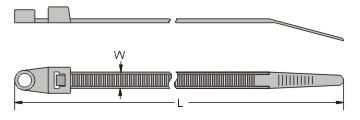

 Standard Design |  TCV-300L, 400 |
| |||||||||||
| Item No. | Length L |
Width W |
Hole dia. | Max. Bundle Dia. | Min Loop Tensile Strength | Packing | |||||
| mm | inch | lbs | kgs | ||||||||
 | TCV-100 | 110.0 | 4 3/8" | 2.5 | 3.2 | 25 | 18 | 8 | 100 pcs / Bag | ||
| TCV-155 | 171.5 | 6 11/16" | 3.7 | 5.0 | 40 | 40 | 18 | |||
| TCVS-170 | 171.5 | 6 11/16" | 3.7 | 4.0 | 40 | 40 | 18 | ||||
| TCV-205 | 219.0 | 8 11/16" | 4.2 | 5.0 | 52 | 50 | 22 | |||
| TCV-205DZ | 219.0 | 8 11/16" | 4.8 | 5.0 | 52 | 75 | 34 | ||||
| TCV-300 | 300.0 | 11 7/8" | 4.8 | 4.8 | 85 | 50 | 22 | |||
| TCV-300L | 300.0 | 12 1/2" | 7.8 | 6.0 | 80 | 120 | 55 | ||||
| TCV-370 | 370.0 | 14 1/2" | 4.8 | 4.8 | 102 | 50 | 22 | |||
| TCV-400 | 400.0 | 15 3/4" | 7.9 | 6.0 | 112 | 120 | 55 | |||
