| ● | Material: UL approved Nylon 66, 94HB. |
| ● | Color: Black. |
| ● | Application: One piece self-lock cable tie save the time and make effective for installation. |
| ● | Feature: |
| 1. Excellent resistance to low temperature and UV light. | |
| 2. Min. installation temperature: -20℃; Min. operating temperature: -40℃ |


|  |
|
 | ||||||||||

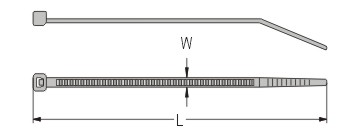

| Item No. | Length L | Width W | Max. Bundle Dia. | Min Loop Tensile Strength | Packing | |||||
| mm | inch | lbs | kgs | |||||||
| CV-150CWBK | 150.0 | 6" | 3.6 | 36 | 40 | 18 | 100 pcs / Bag | |||
| CV-292CWBK | 292.0 | 11 1/2"" | 3.6 | 82 | 40 | 18 | ||||
| CV-200DCWBK | 203.0 | 8" | 4.8 | 52 | 50 | 22 | ||||
| CV-250CWBK | 250.0 | 10" | 4.8 | 68 | 50 | 22 | ||||
| CV-300SCWBK | 300.0 | 11 7/8"" | 4.8 | 83 | 50 | 22 | ||||
| CV-368CWBK | 368.0 | 14 1/2"" | 4.8 | 105 | 50 | 22 | ||||
| CV-385CWBK | 385.0 | 15 3/16"" | 4.8 | 110 | 50 | 18 | ||||
| CV-370CWBK | 370.0 | 14 9/16"" | 7.6 | 101 | 120 | 55 | ||||
| CV-380CWBK | 380.0 | 15" | 7.6 | 105 | 120 | 55 | ||||
| CV-450CWBK | 450.0 | 17 3/4"" | 8.0 | 128 | 120 | 55 | ||||
