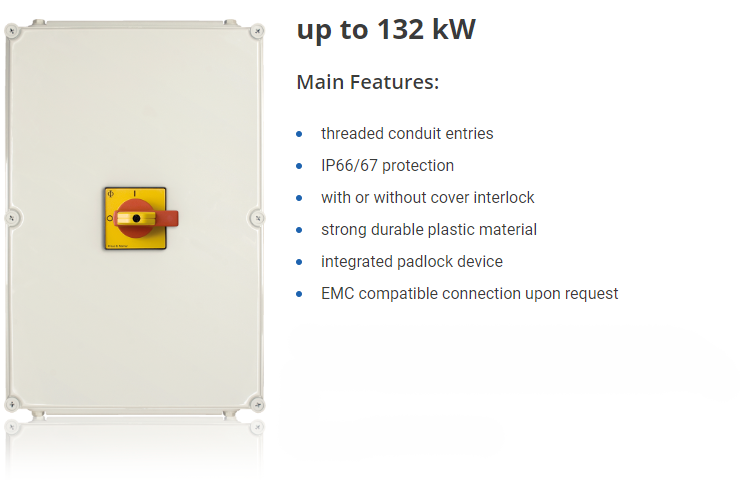

Main Switches with Emergency Function in Enclosure

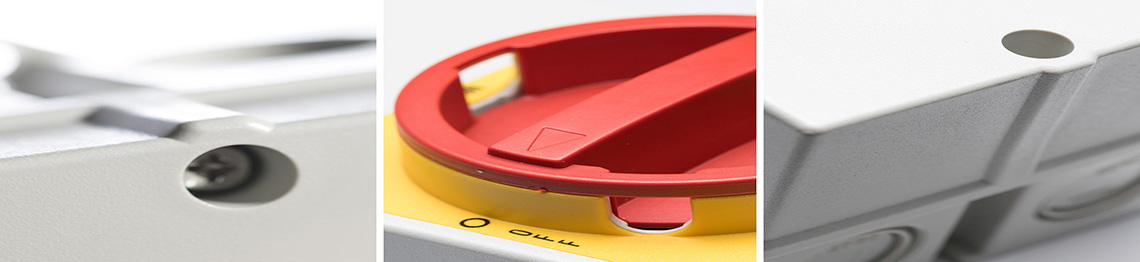

Maintenance and safety switches consist of switch disconnectors equipped in high strength durable plastic enclosures which are designed with extra space for easy wiring. The enclosures are completely insulated according to IEC 364-4-41, HD 384.4.41 S2 and VDE 0100-410. Each enclosure has either knock-outs for metric threads according to EN 50262 or metric threaded conduit entries on top and bottom. Safety switch interlocks with lid to prevent opening in "ON" position are supplied with enclosures.
> All enclosures are IP66/67 protected.
> Main switches are equipped with electro-gray or black handles.

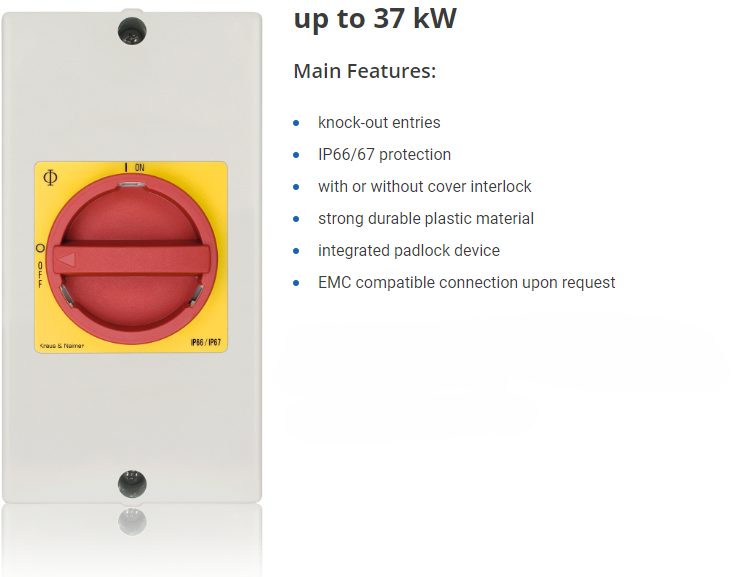

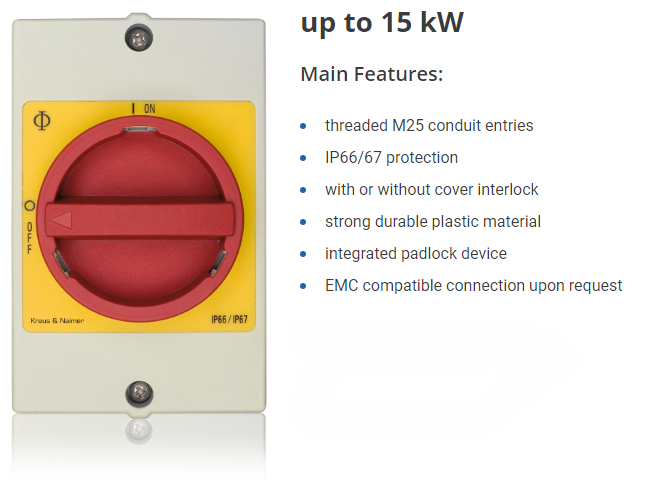

> Main switches with emergency function are supplied with red handle and contrasting yellow faceplate.
> Maintenance and safety switch enclosures are available with high UV-resistance or against an aggressive environment.
> All enclosures are equipped with a ground terminal.
> Auxiliary contacts close after the main contacts close and open before main contacts open.
Maintenance & Safety Switches
