Photoelectric Sensors


<< Back >>

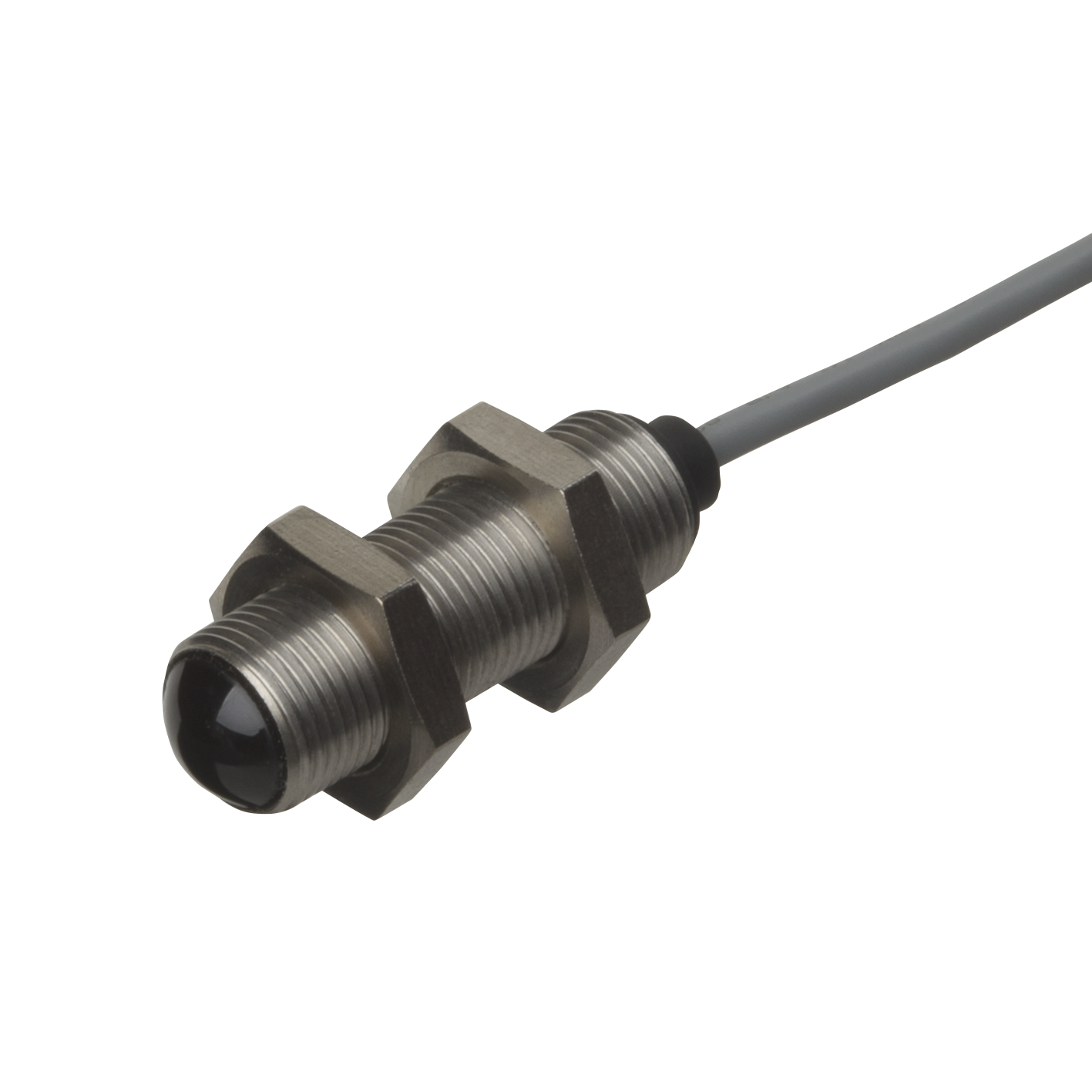

PA12BNT20C2
Through-beam Photoelectric Emitter, Range 20m, Infrared modulated light 860nm, Power Supply 10-30VDC, Pig-Tail 5m Cable, Mute Low, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20NC
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, NPN Output, NC, Dark Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20NCC2
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, NPN Output, NC, Dark Switching, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20NO
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, NPN Output, NO, Light Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20NOC2
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, NPN Output, NO, Light Switching, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20PC
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, PNP Output, NC, Dark Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20PCC2
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, PNP Output, NC, Dark Switching, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet

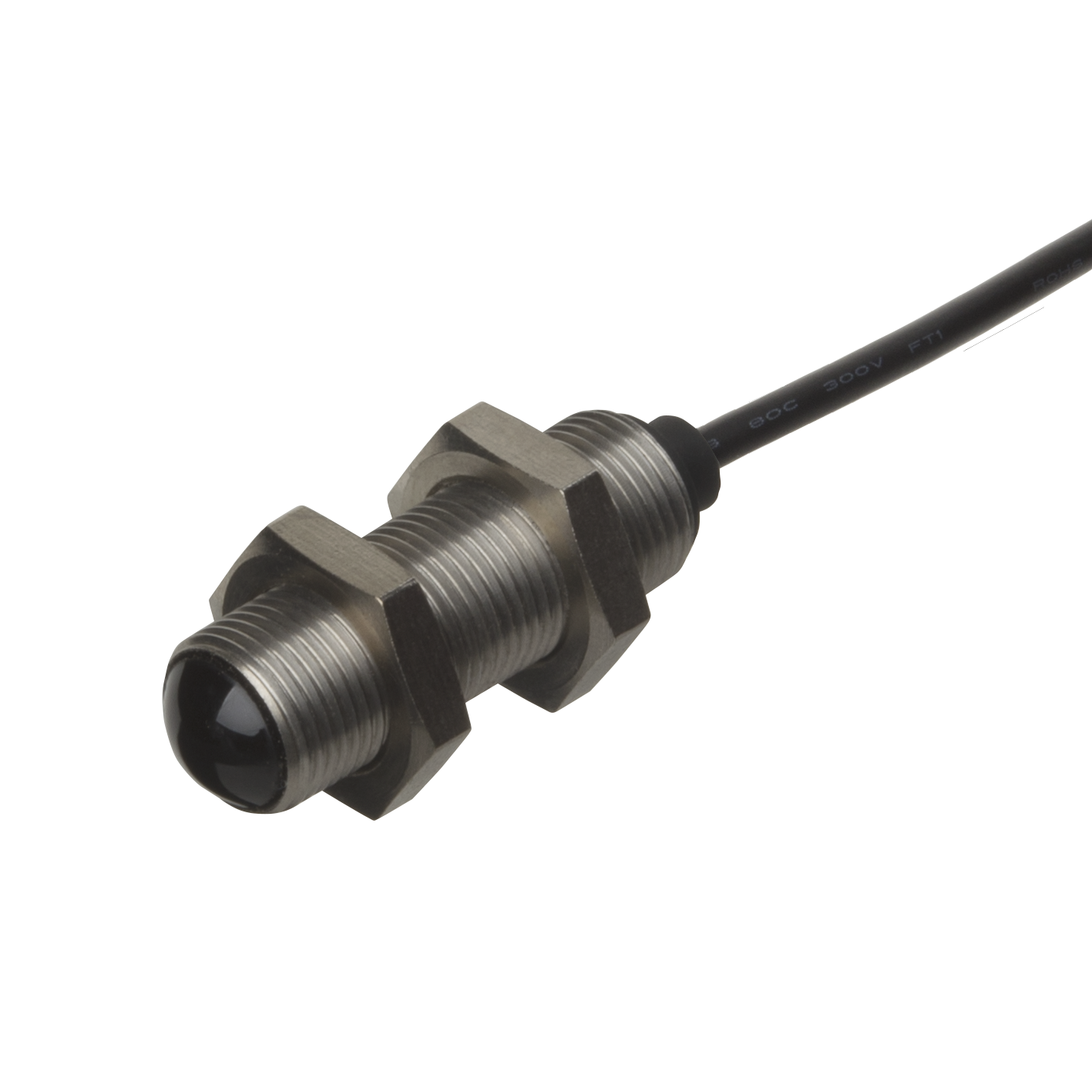

PA12BNT20PO
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, PNP Output, NO, Light Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12BNT20POC2
Through-beam Photoelectric Receiver, Range 20m, Power Supply 10-30VDC, PNP Output, NO, Light Switching, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12B1T20
Through-beam Photoelectric Emitter, Range 20m, Code 1, Infrared modulated light 880nm, Power Supply 10-30VDC, 5m Cable, Mute Low, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12B1T20C2
Through-beam Photoelectric Emitter, Code 1, Range 20m, Infrared modulated light 880nm, Power Supply 10-30VDC, Pig-Tail 5m Cable, Mute Low, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PA12B1T20NC
Through-beam Photoelectric Receiver, Code 1, Range 20m, Power Supply 10-30VDC, NPN Output, NC, Dark Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
