Photoelectric Sensors


<< Back >>
PMP6RIT
Polarized Retro-reflective, Photoelectric Sensor, range 12 m, Polarized Red modulated light 660nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\\\
Data sheet
PMR10RG
Retro-reflective, Photoelectric Sensor, range 12 m, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5
Data sheet
PMR10RGT
Retro-reflective, Photoelectric Sensor, range 12 m, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5, Time delay
Data sheet
PMR10RI
Retro-reflective, Photoelectric Sensor, range 12 m, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\\\\\\\
Data sheet
PMR10RIT
Retro-reflective, Photoelectric Sensor, range 12 m, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2 NPT, Time delay
Data sheet
PMT20G
Through-beam Photoelectric Emitter, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5
Data sheet
PMT20GM
Through-beam Photoelectric Emitter, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5, Mute function, UL325
Data sheet

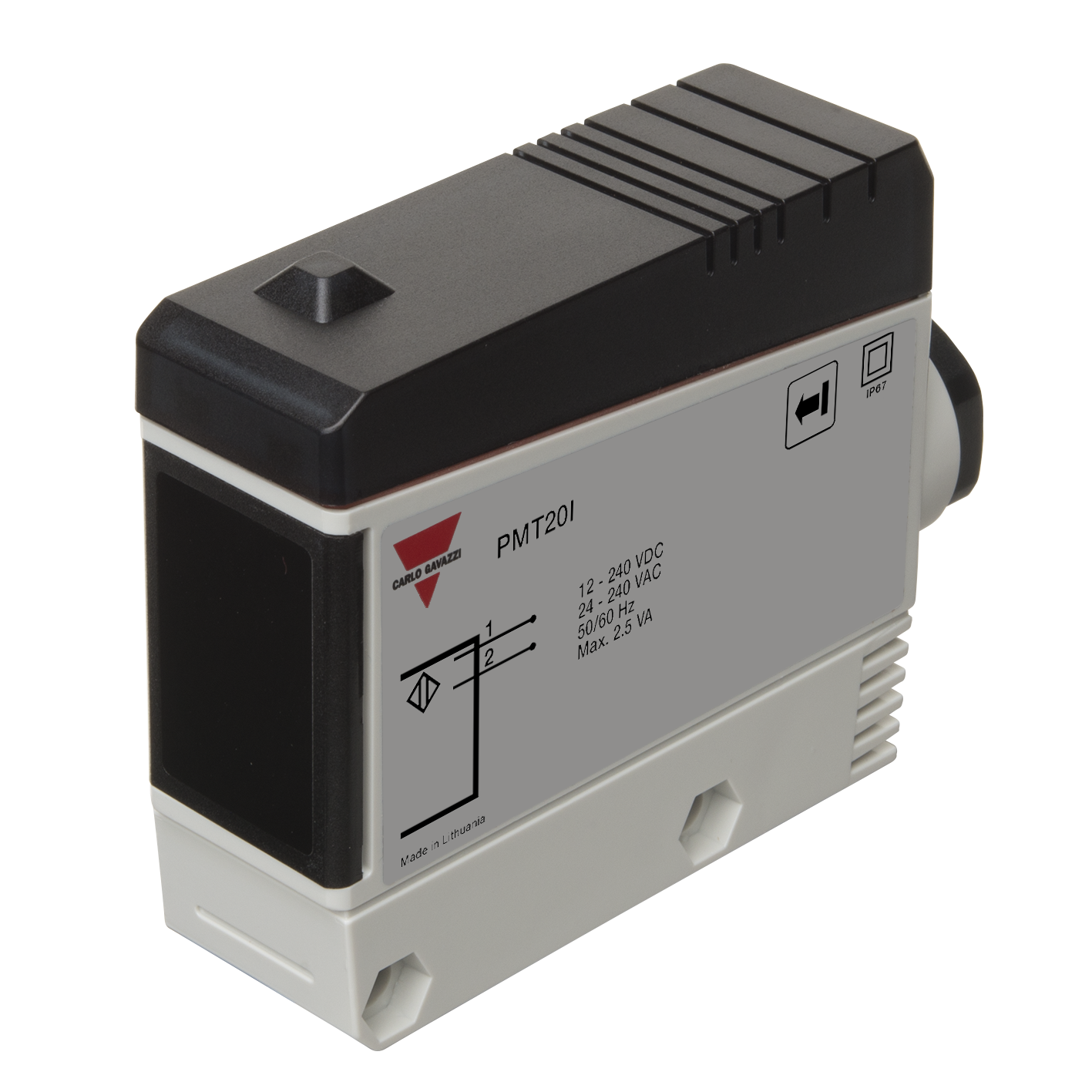

PMT20I
Through-beam Photoelectric Emitter, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\\\
Data sheet

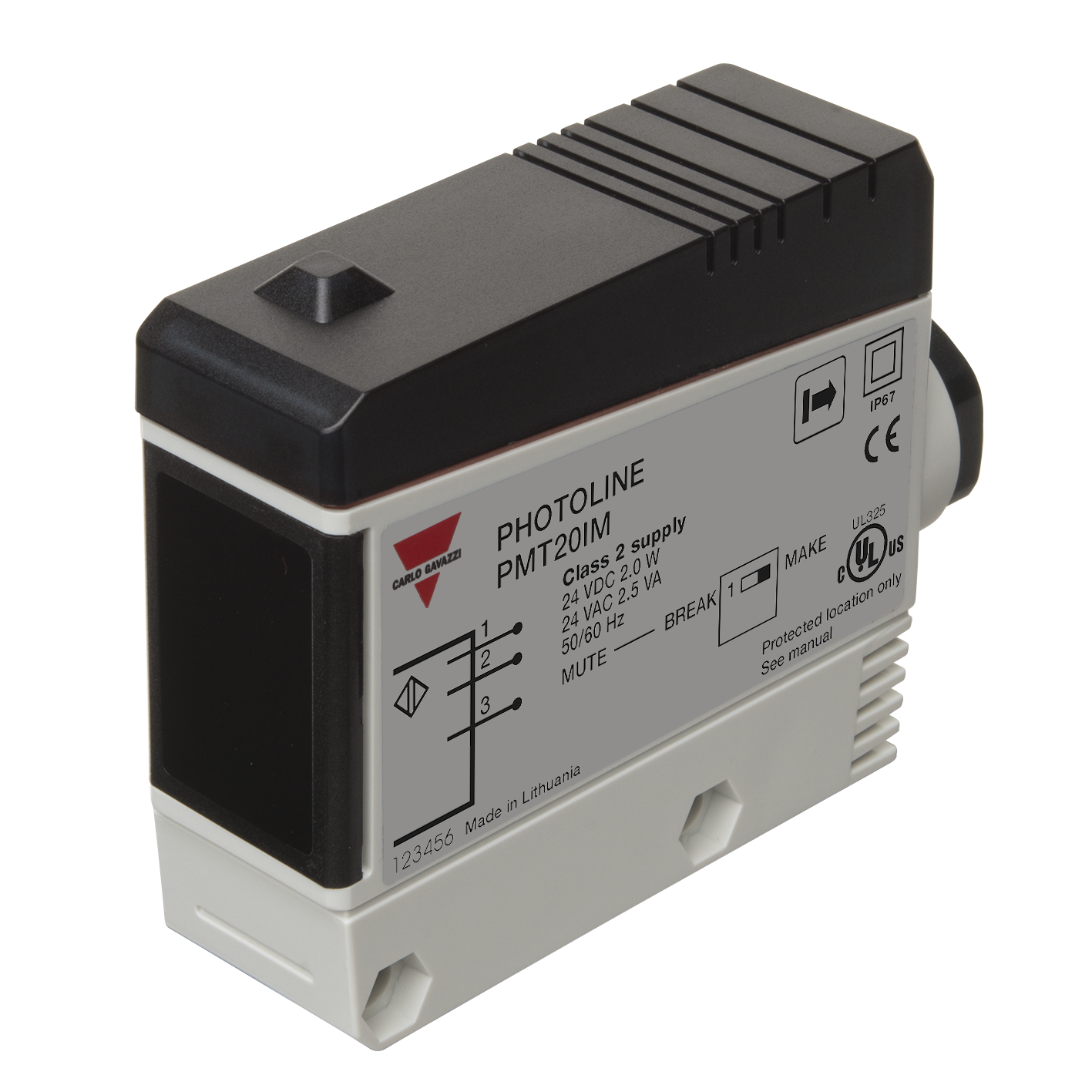

PMT20IM
Through-beam Photoelectric Emitter, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\\\\\\\
Data sheet
PMT20RG
Through-beam Photoelectric Receiver, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC & 21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5
Data sheet

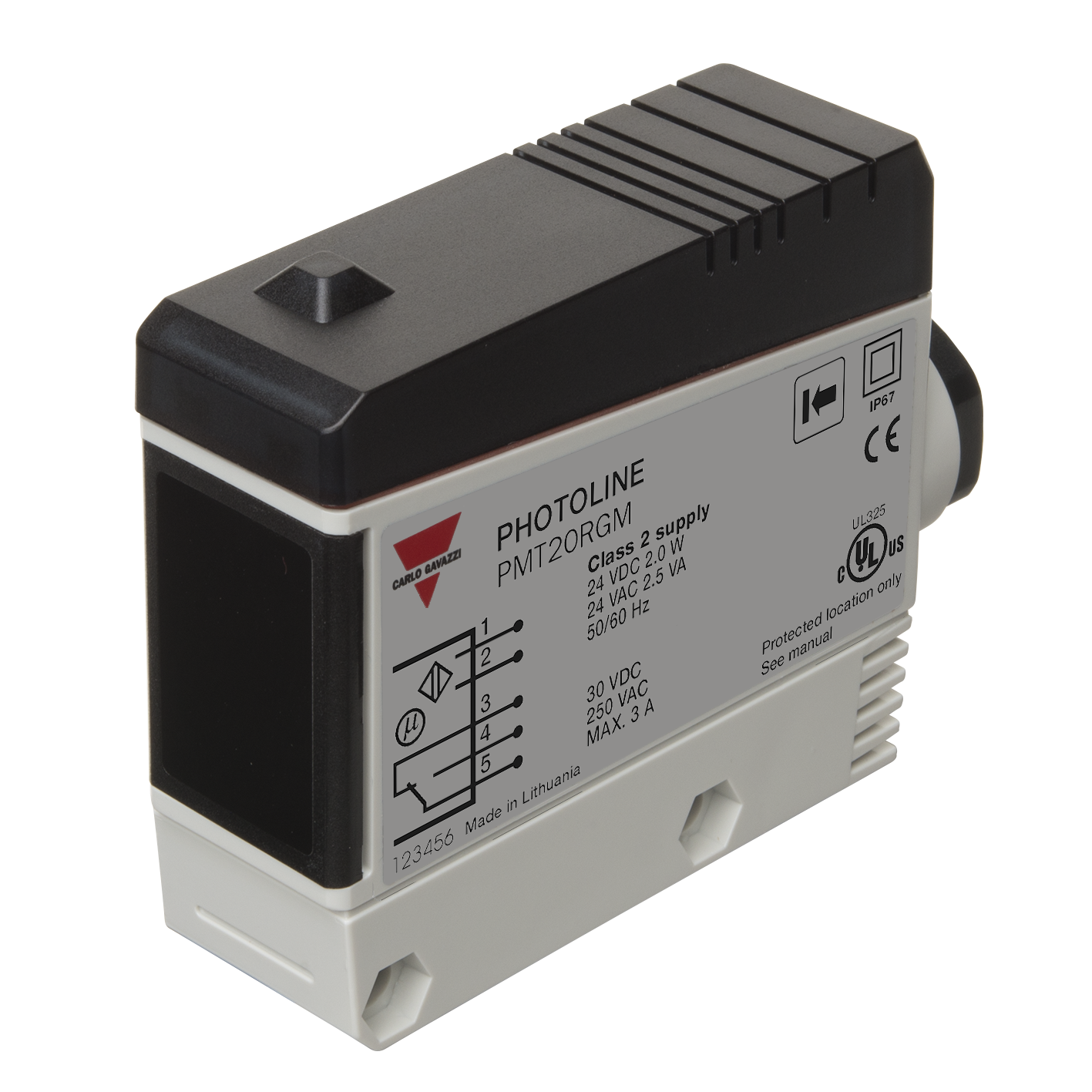

PMT20RGM
Through-beam Photoelectric Receiver, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC & 21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5, Mute input, UL235
Data sheet

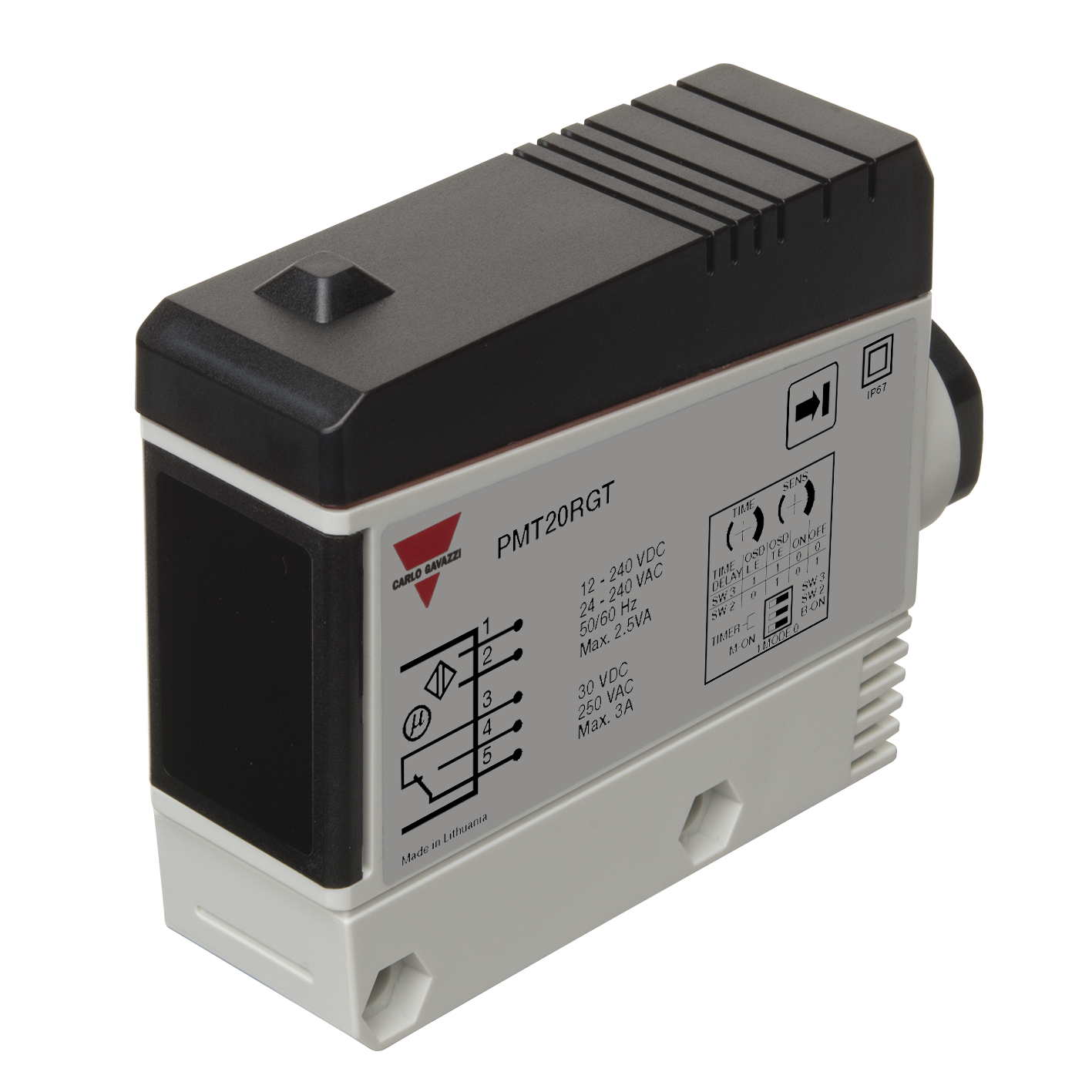

PMT20RGT
Through-beam Photoelectric Receiver, Range: 20000mm, Adjustable Sensitivity, Infrared modulated light 880nm, Power Supply 10.8-264VDC & 21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. PG13.5, Time Delay
Data sheet
