Photoelectric Sensors


<< Back >>
PE12C3T15NO
Through-beam Photoelectric Receiver, Code 3, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, NPN Output, NO, Light Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PE12C3T15PC
Through-beam Photoelectric Receiver, Code 3, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, PNP Output, NC, Dark Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PE12C3T15PO
Through-beam Photoelectric Receiver, Code 3, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, PNP Output, NO, Light Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PE12C3T15POC2
Through-beam Photoelectric Receiver, Code 3, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, PNP Output, NO, Light Switching, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PF74CNT30BC
Photoelectric Fork Sensor, Range 30mm, infrared modulated light 940nm, Power Supply 24VDC, NPN+PNP Output, NO and NC, Connection Cable
Data sheet

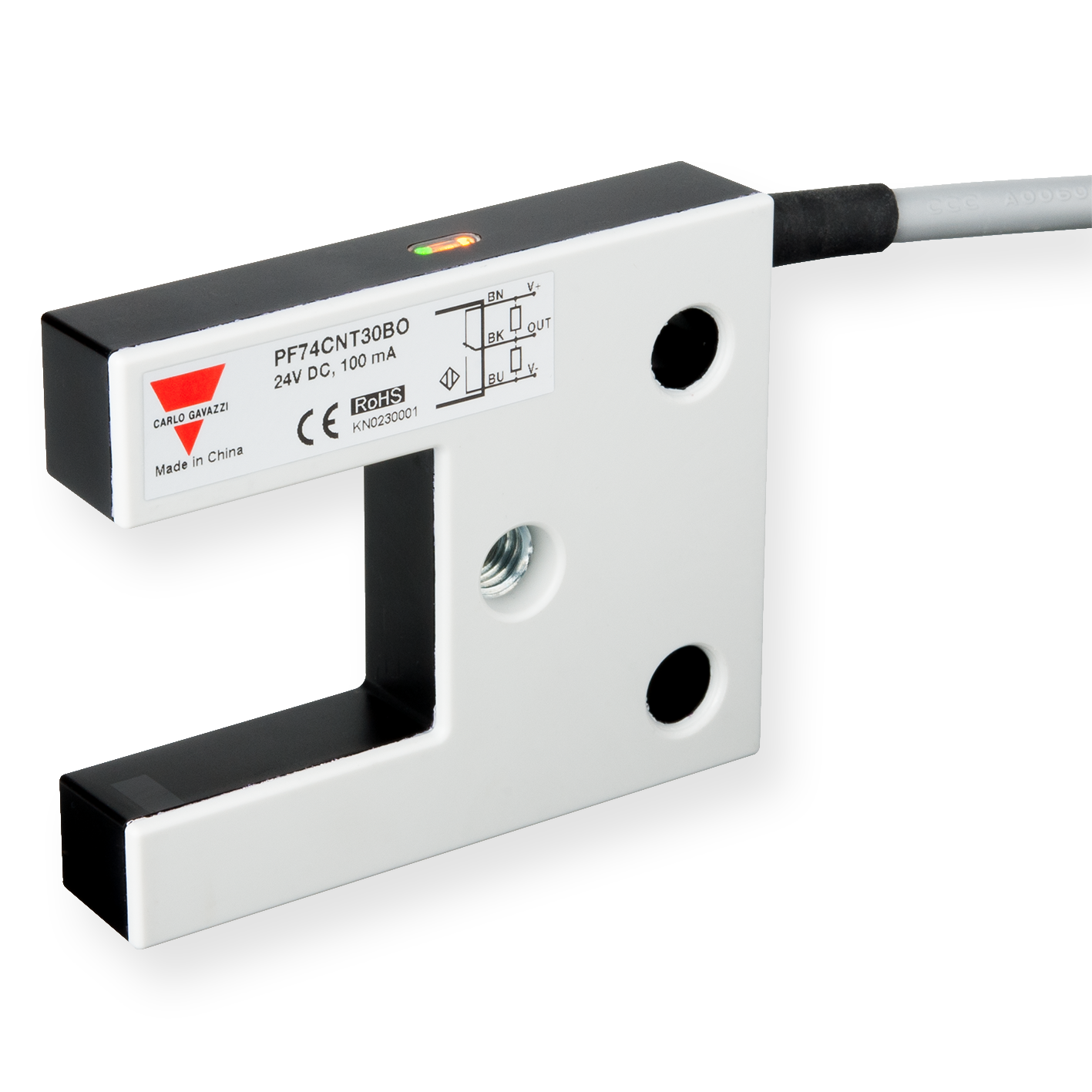

PF74CNT30BO
Photoelectric Fork Sensor, Range 30mm, infrared modulated light 940nm, Power Supply 24VDC, NPN+PNP Output, NO and NC, Connection Cable
Data sheet
PH18CNB20NAM1SA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, M12 connection, M18 Square housing
Data sheet

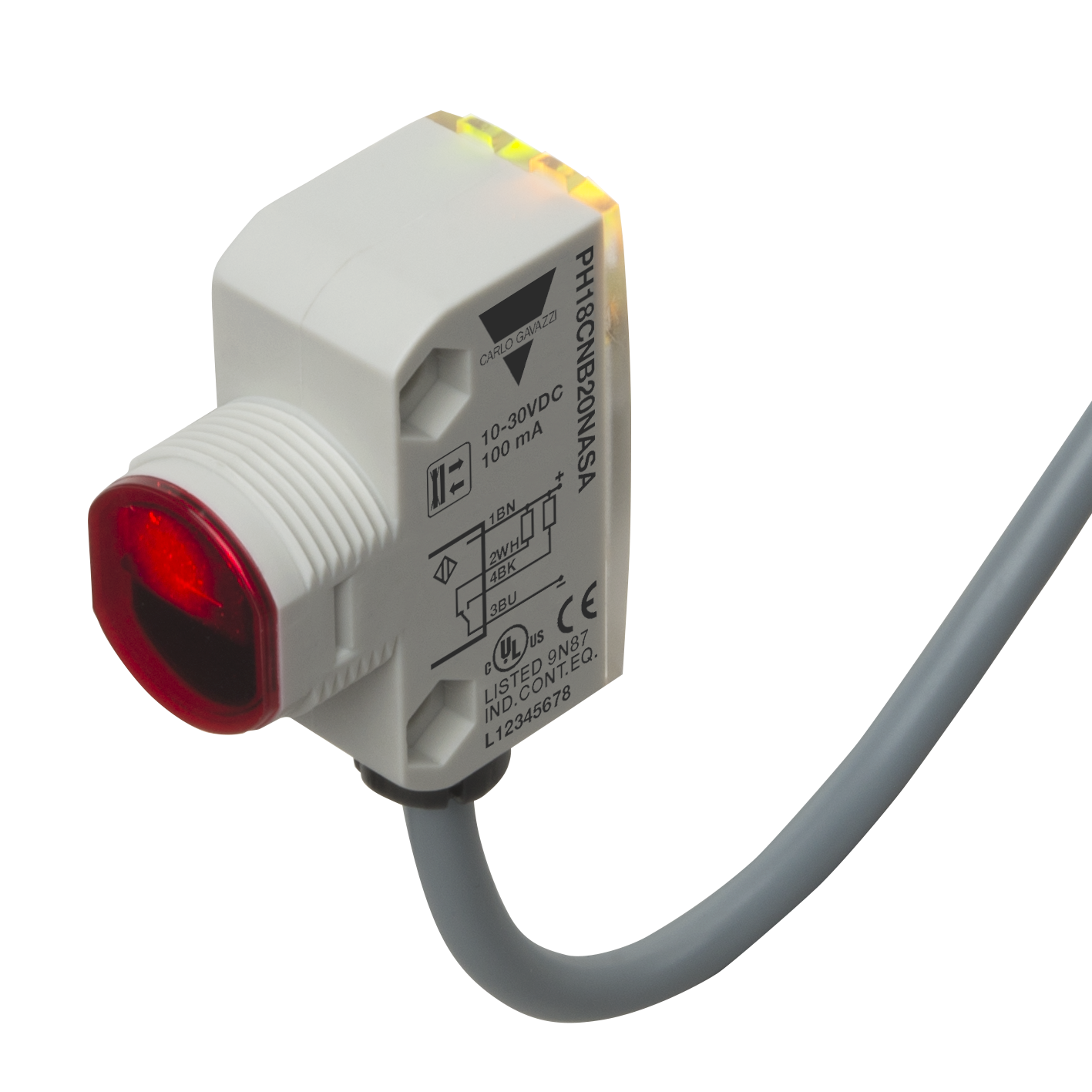

PH18CNB20NASA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, M18 Square housing
Data sheet
PH18CNB20NAT1SA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Pigtail connection, M18 housing
Data sheet

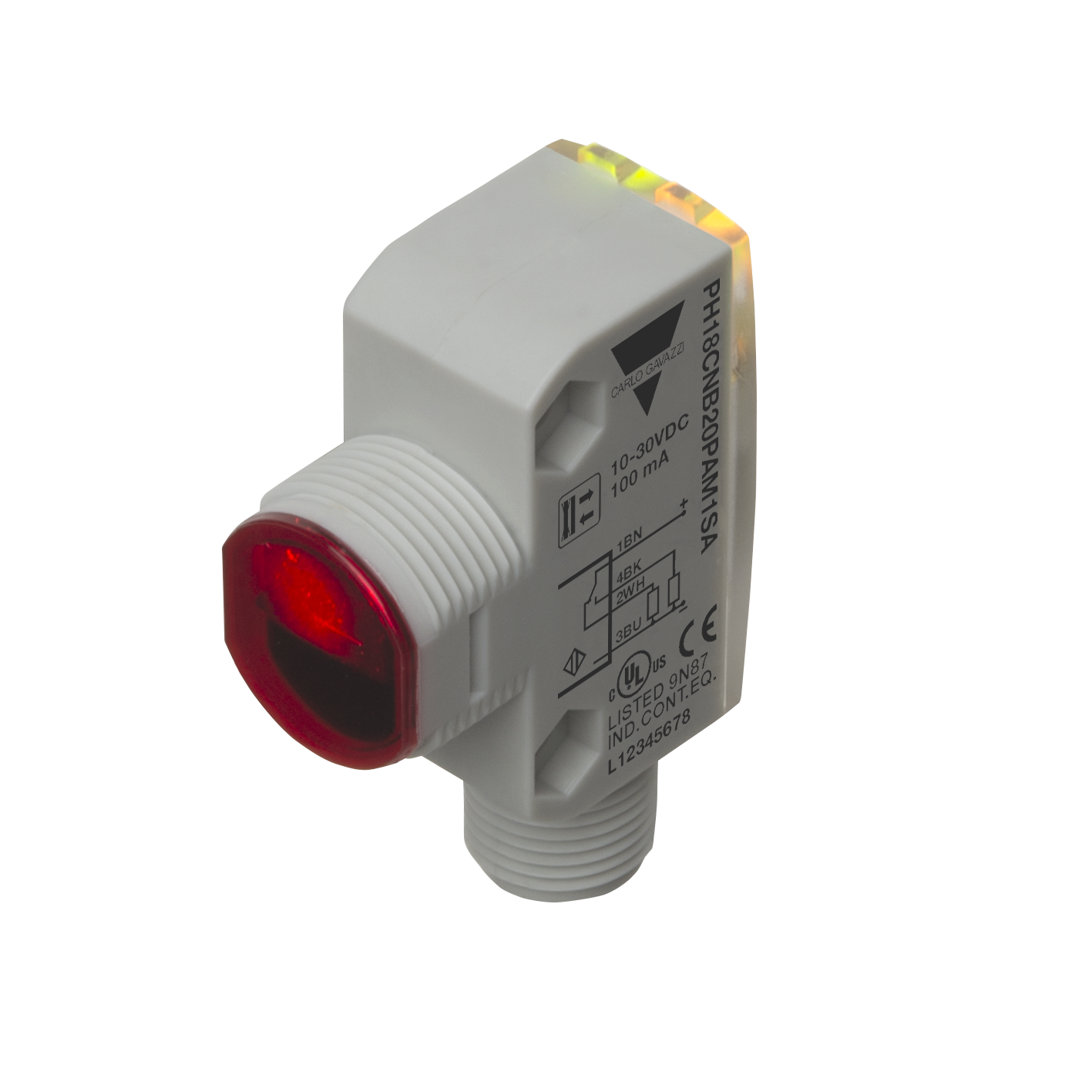

PH18CNB20PAM1SA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, M12 connection, M18 Square housing
Data sheet
PH18CNB20PASA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Cable connection, M18 Square housing
Data sheet

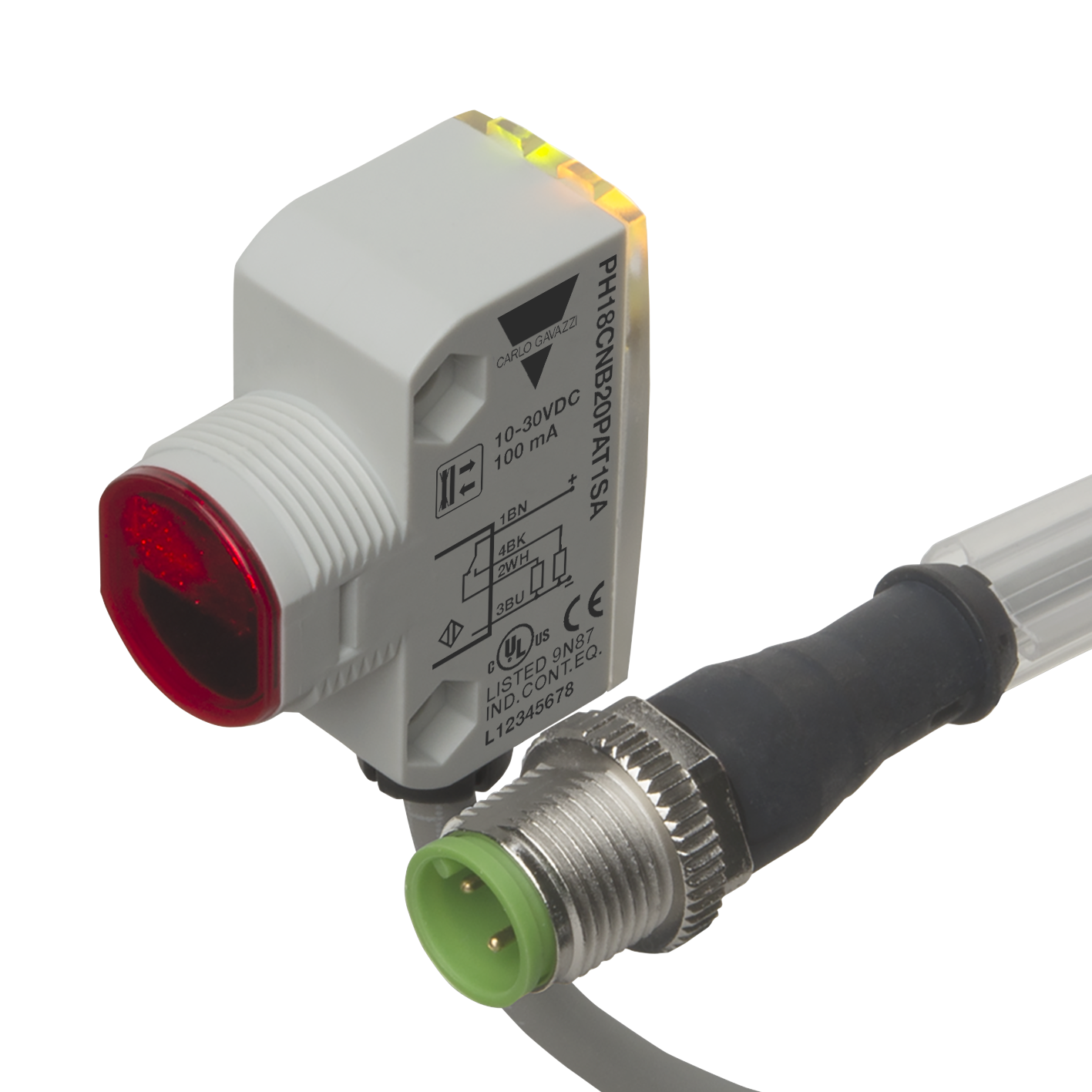

PH18CNB20PAT1SA
Diffuse-reflective Photoelectric Sensor with Background Suppression, adjustable sensitivity, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Pigtail connection, M18 housing
Data sheet
