Photoelectric Sensors


<< Back >>
PD70CNT12PO
Through-beam Photoelectric Receiver, Range 12m, Power Supply 10-30VDC, PNP Output, NO, Light Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet

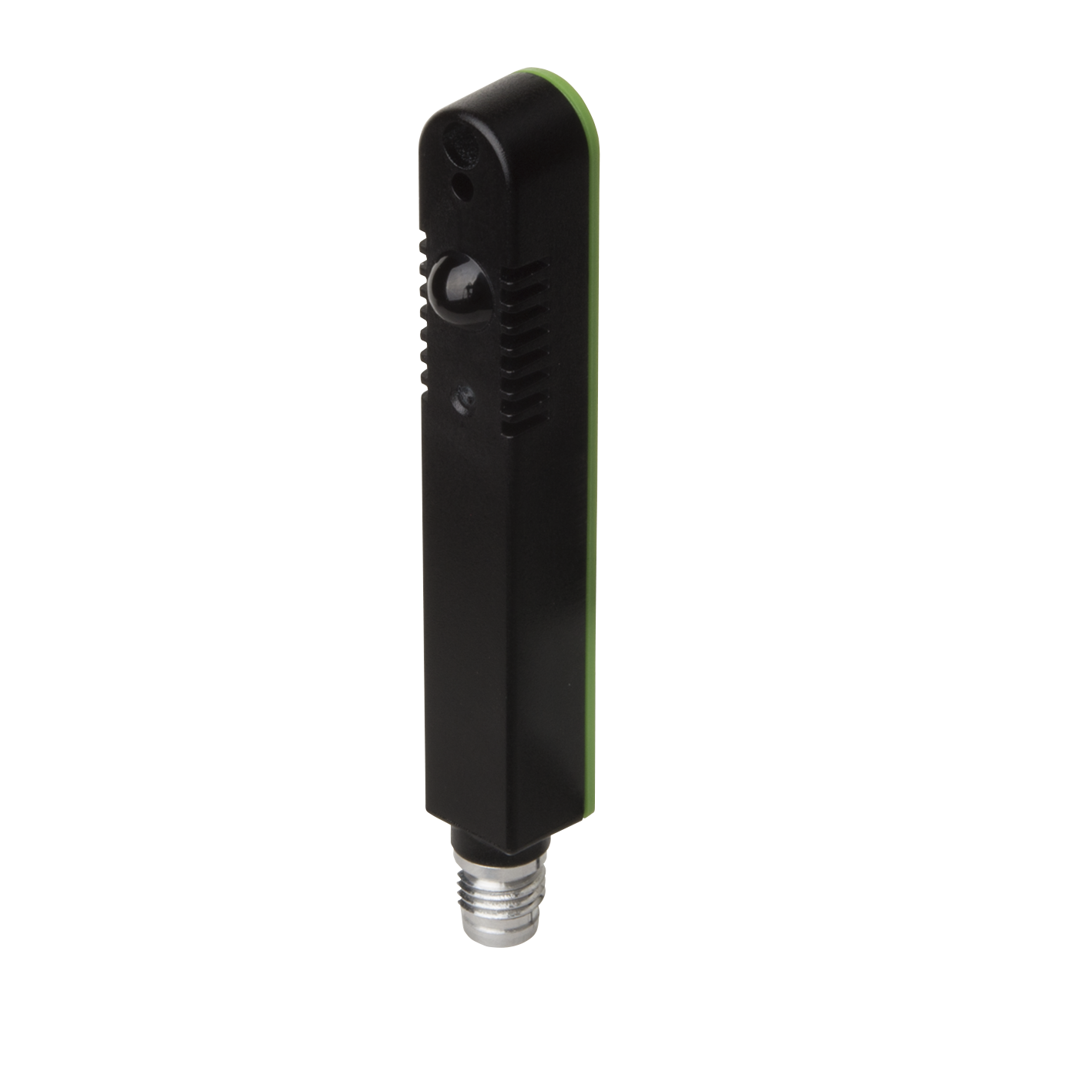

PD70CNT12POM5
Through-beam Photoelectric Receiver, Range 12m, Power Supply 10-30VDC, PNP Output, NO, Light Switching, Connector M8, ESPE type 2, EN12445, EN12453, EN12978, UL325
Data sheet
PD86CAP12QPTD
Polarized retro-reflective sensor, Range: 12000mm, Red light 620nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet
PD86CAP12QPTF
Polarized retro-reflective sensor, Range: 12000mm, Red light 620nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet

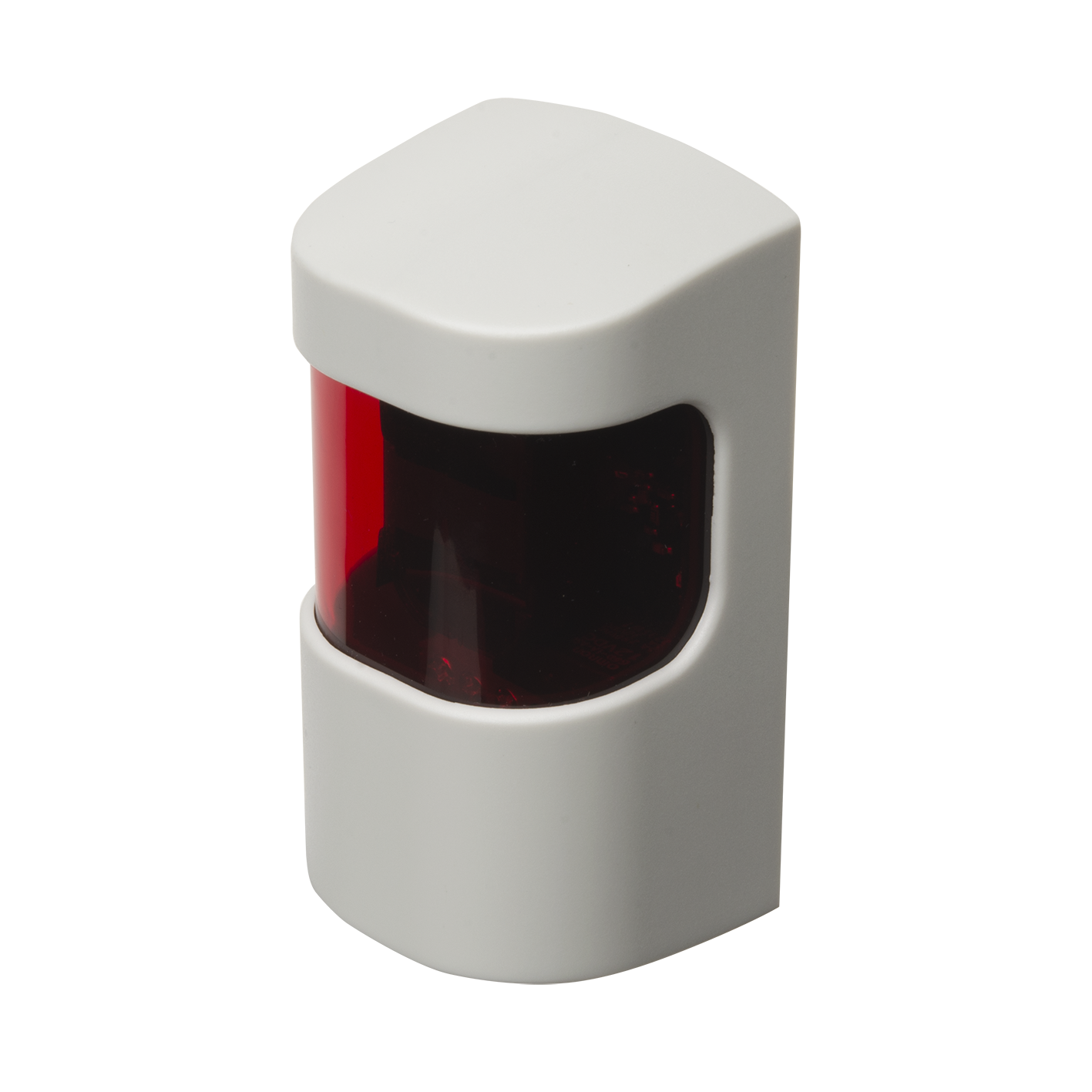

PD86CNP12QPMU
Polarized retro-reflective sensor, Range: 12000mm, Red light 660nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet
PD86HAP12QPTD-01C
Polarized retro-reflective sensor, Range: 12000mm, Red light 620nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet
PD86HAP12QPTF-01C
Polarized retro-reflective sensor, Range: 12000mm, Red light 620nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet

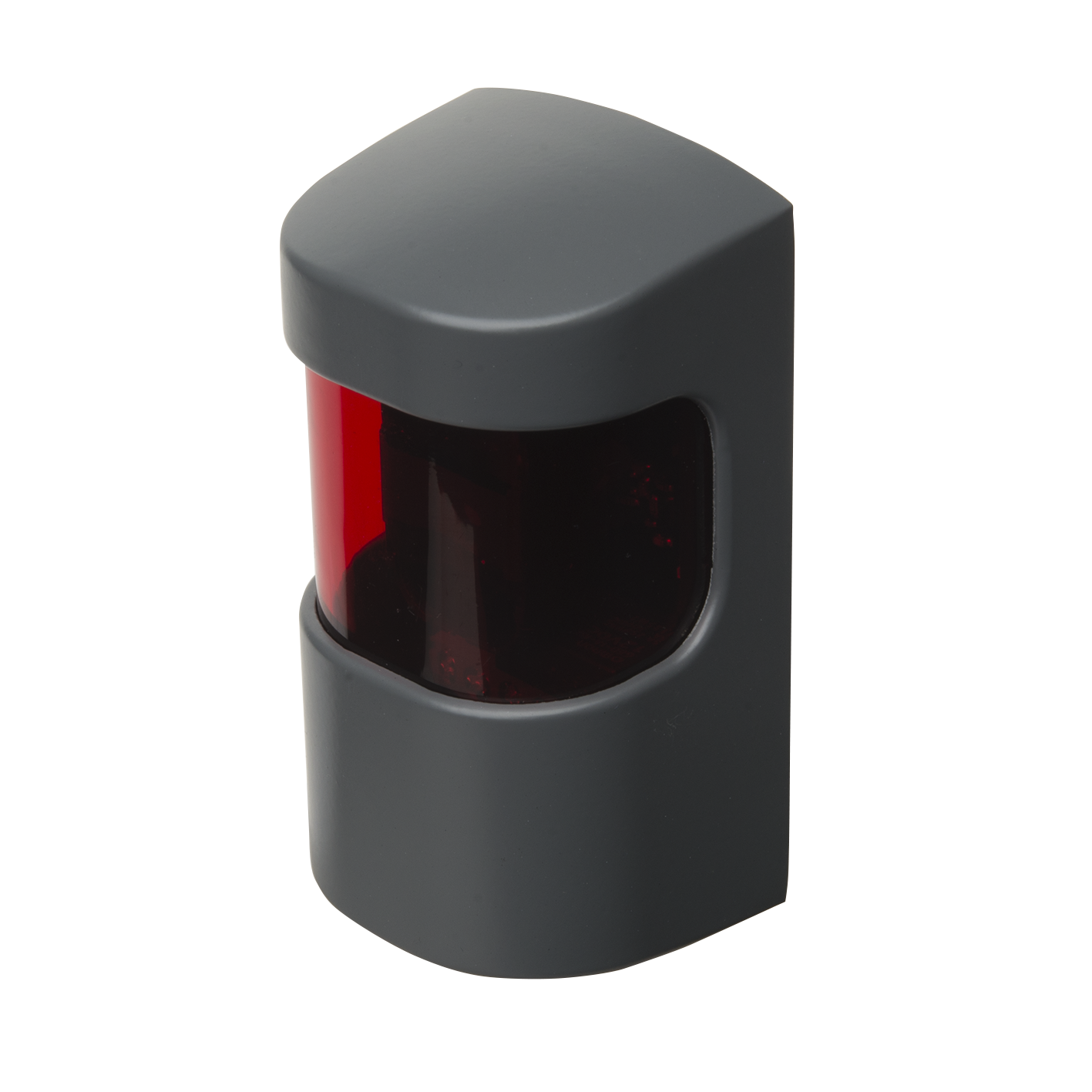

PD86HNP12QPMU-01C
Polarized retro-reflective sensor, Range: 12000mm, Red light 660nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Data sheet
PD98CNT30QMU
Photoelectric Through-beam photoelectric sensor, Emitter and Receiver, 30 m sensing distance, 5 degree optical angle, Infrared light 880nm, Power Supply 12-24VDC/VAC, screw connection, operating temperature -20 +60&#65533;C, plastic housing 56x98x37mm
Data sheet
PE12CNT15
Through-beam Photoelectric Emitter, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PE12CNT15C2
Through-beam Photoelectric Emitter, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, Pig-Tail 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
PE12CNT15NC
Through-beam Photoelectric Receiver, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, NPN Output, NC, Dark Switching, 5m Cable, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508
Data sheet
