Photoelectric Sensors


<< Back >>

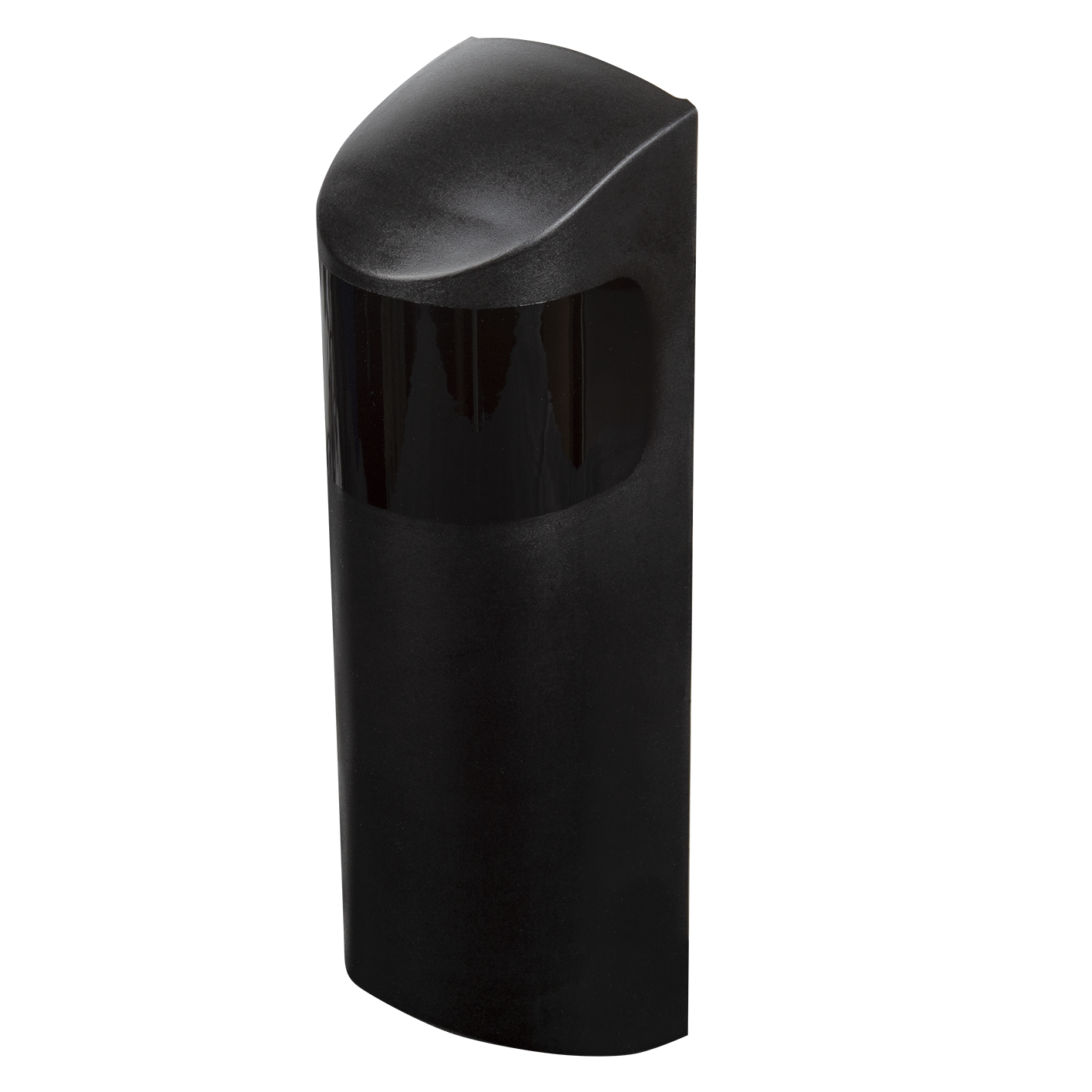

PD180CBT30MU
Photoelectric Through-beam Emitter, Range: 30000mm, Infrared light 850nm, Power Supply Battery, Screw Terminals, 51x49x180mm housing
Data sheet
PD180CBT30Q
Photoelectric Through-beam Receiver, Range: 30000mm, Infrared light 850nm, Power Supply 10-30VDC, NPN/NPN Output, N.O. and N.C., light and dark switching, Cable connection, 51x49x180mm housing
Data sheet
PD30CNB20NAIS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet

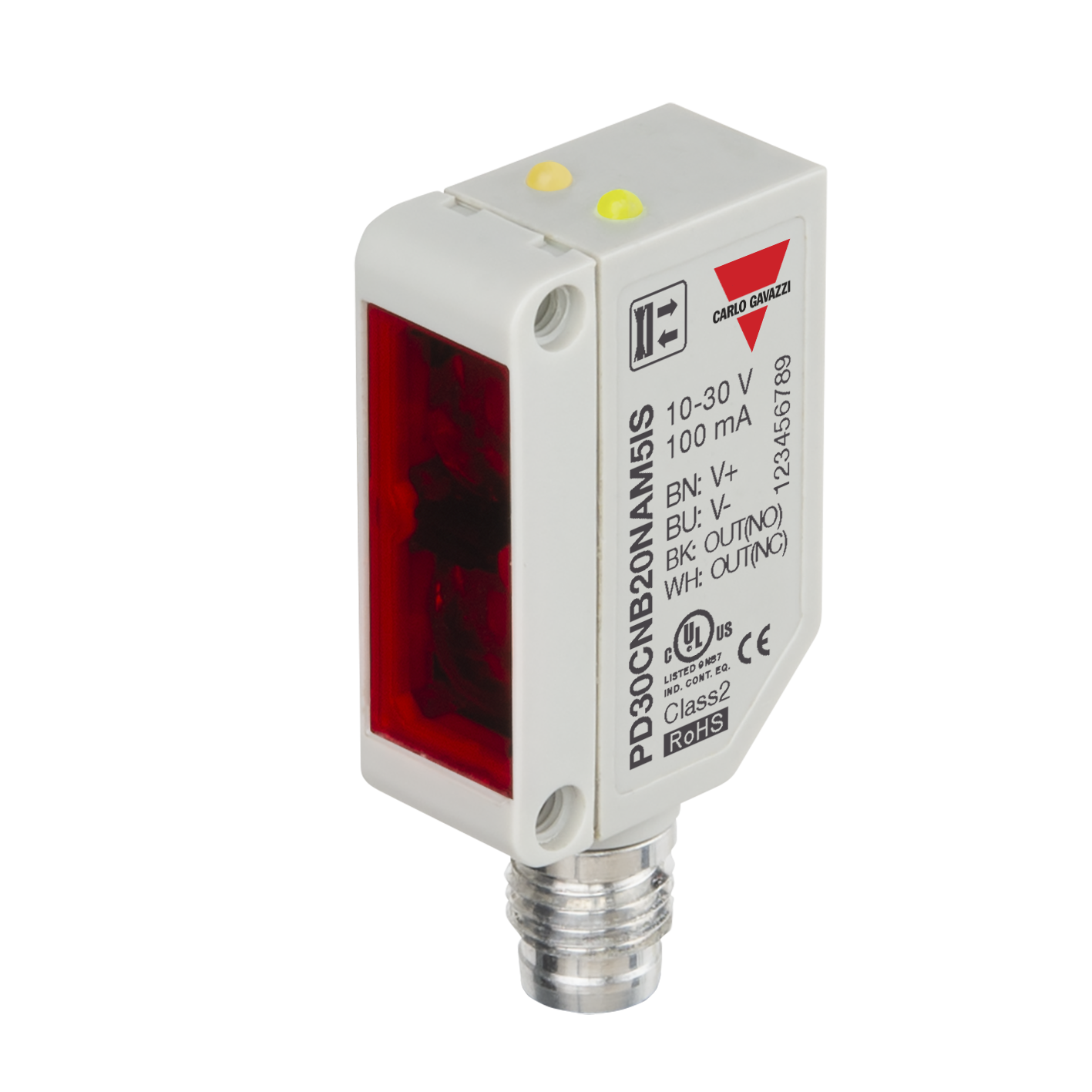

PD30CNB20NAM5IS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, M8 Plug, 10x30x20mm housing
Data sheet
PD30CNB20NAM5SA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, M8 Plug, 10x30x20mm housing
Data sheet
PD30CNB20NASA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet

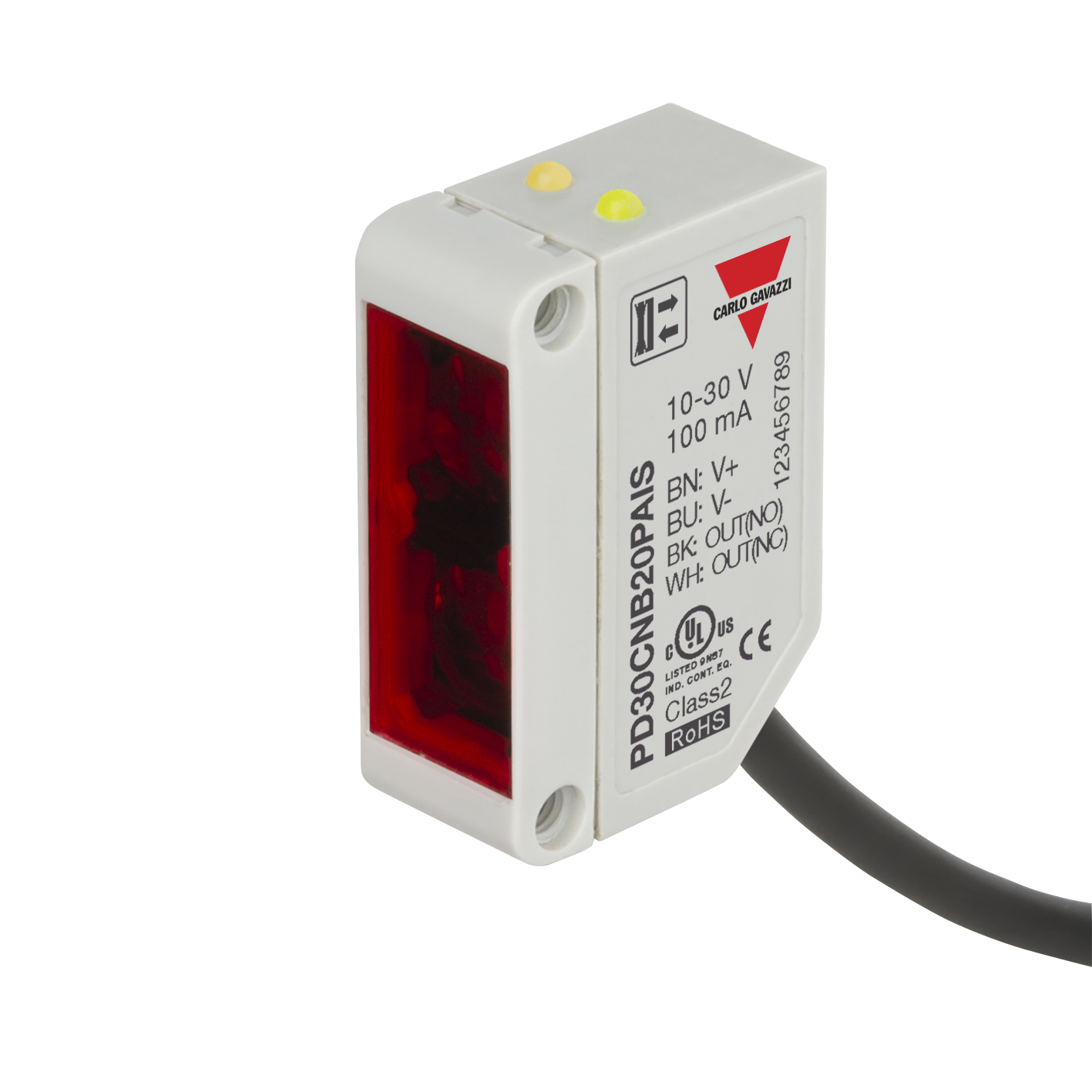

PD30CNB20PAIS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet

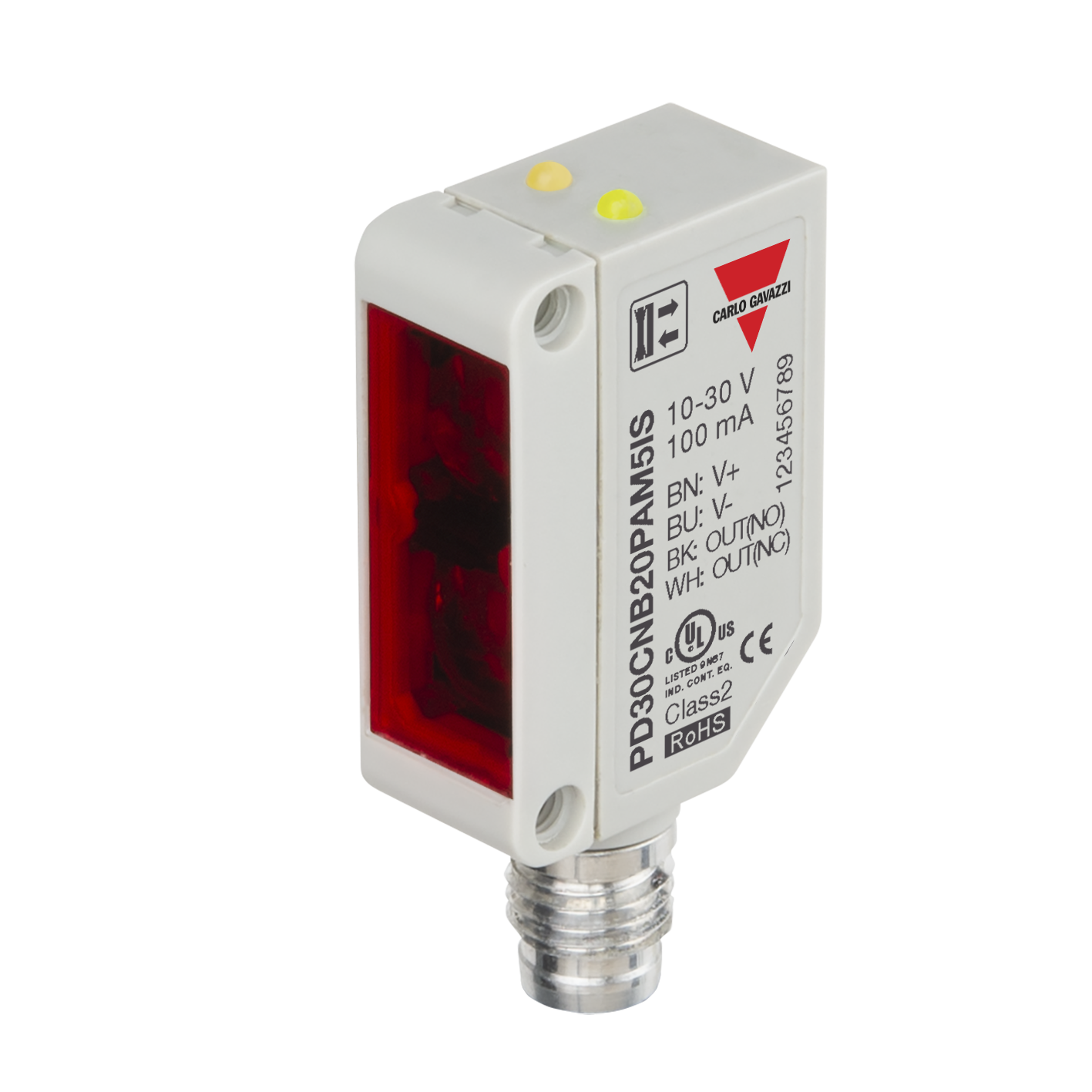

PD30CNB20PAM5IS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, M8 Plug, 10x30x20mm housing
Data sheet

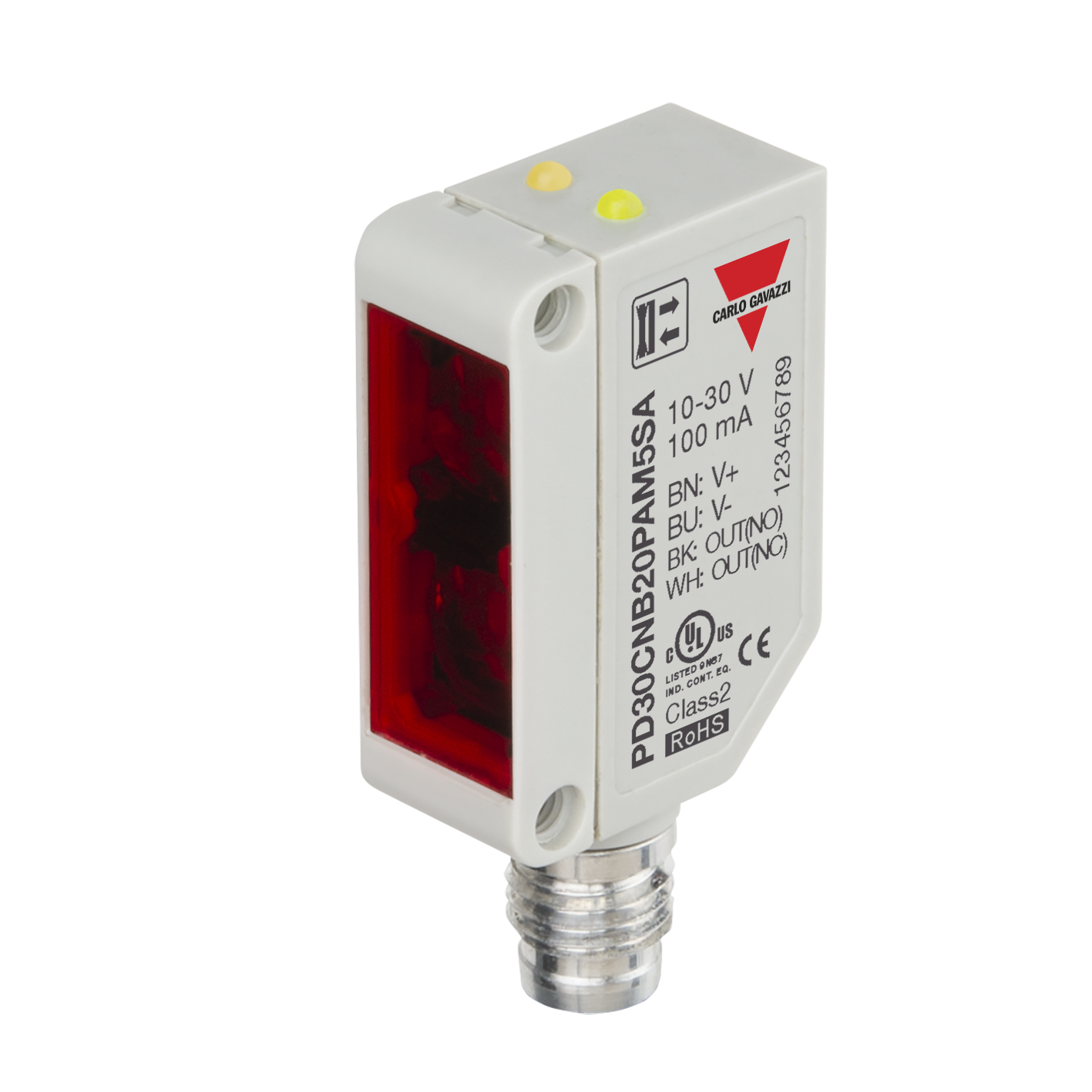

PD30CNB20PAM5SA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, M8 Plug, 10x30x20mm housing
Data sheet
PD30CNB20PASA
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet

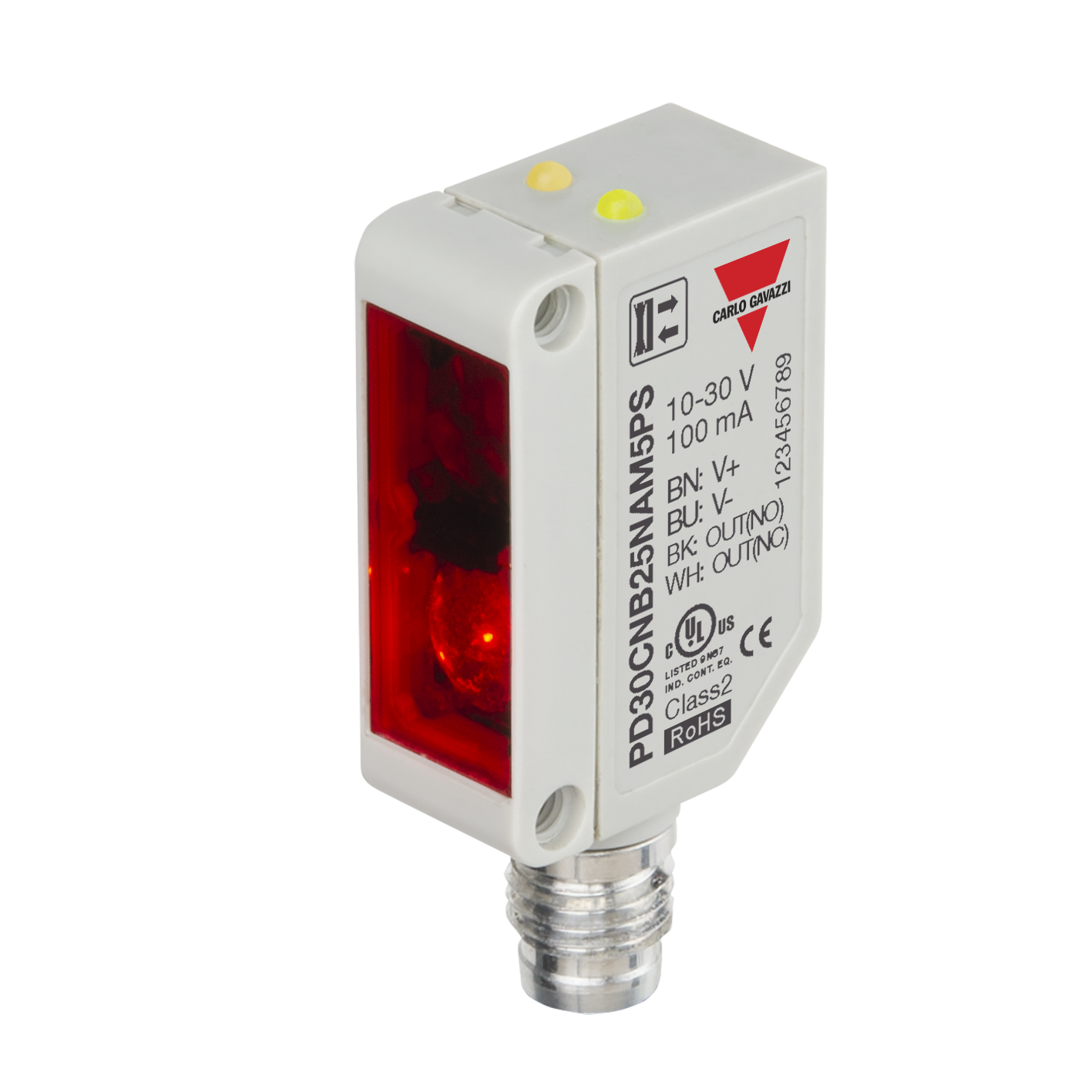

PD30CNB25NAM5PS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, M8 plug, 10x30x20mm housing
Data sheet

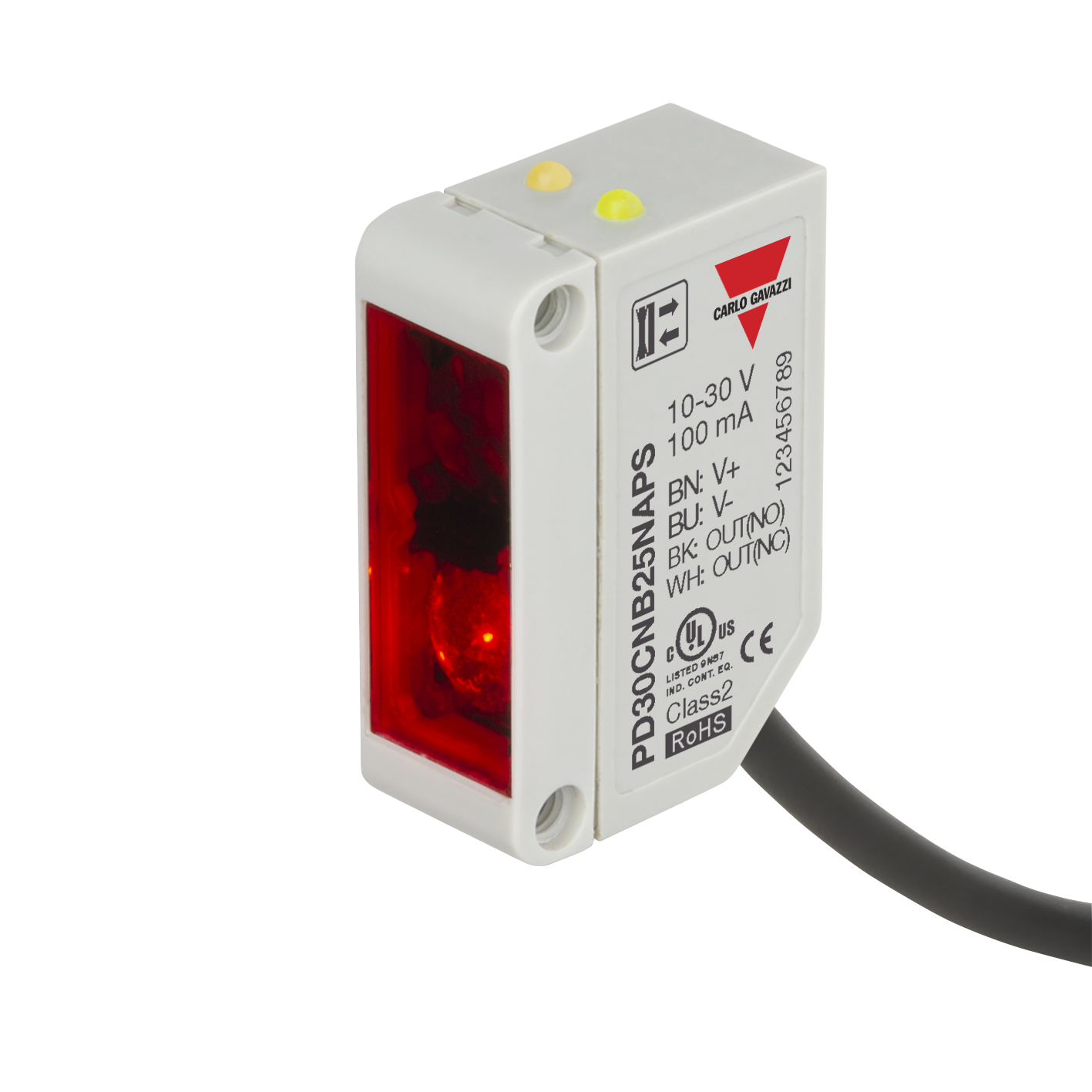

PD30CNB25NAPS
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing
Data sheet
